WGP25/15 Small type gasoline engine project cement injection grout pump for sale

Description:

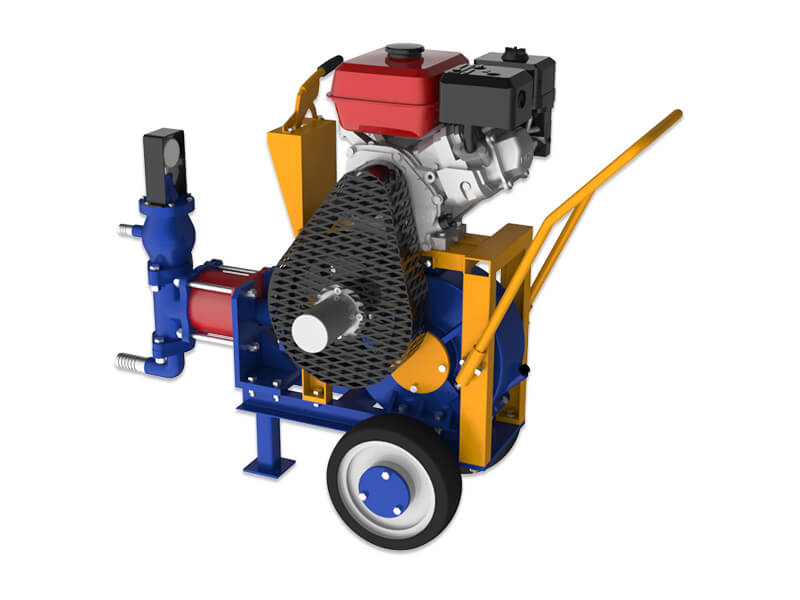

WGP25/15  is small type gasoline engine grout pump. The piston is driven by the gasoline engine to produce reciprocating motion, and the cement slurry is sucked into the air chamber by the suction valve, and discharged through the pump cylinder.

Mobile Phone: +86-19913803800
E-mail: sales@wodetec.com

FEATURES

1.Small size, light weight, easy to move;

2.Gasoline engine, don’t need electric supply;

3.Simple structure, durable;

4.Grouting cement slurry and chemical slurry.

small grout pump

TECHNICAL PAREMETER

Model

WGP25/15

Output Capacity

25L/min

Working Pressure

15bar

Piston Diameter

110mm

Piston Stroke

42mm

Cycle

90/time

Gasoline Engine Power

4.8Kw

Outlet Diameter

25/32mm

Inlet Diameter

19/25mm

Weight

120Kg

Dimension

1135x525x890mm





APPLICATION

WGP25/15 grout pump is mainly used for bridges, houses small areas of seepage prevention, leakage prevention, plugging and repair;  tunnels, mines, highways and other area without electric power supply etc.
