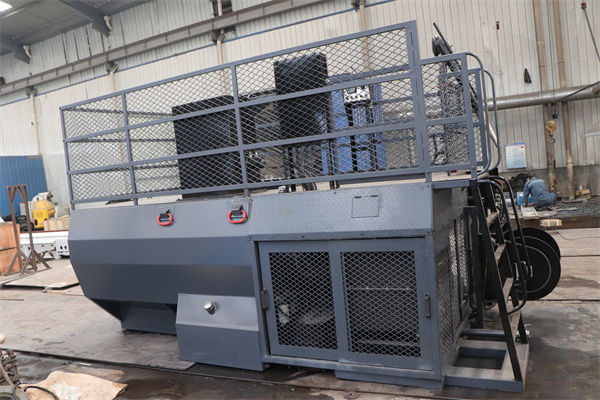

WHS0551 Hydroseeder spray grass seed for highway slope
Description:
WHS0551 is a new, wide applicability, simple operation and maintenance hydroseeder. 5000L(1320Gallon), 51kw Cummins diesel engine, Industrial grade Air-controlled large torque clutch.
Specially design centrifugal pump: 4''x2'', capacity 73m /h.
Spraying distance of up to 60m from cannon;
Tank capacity is 2000L, 3000L, 6000L, 8000L, 13000L or 15000L. Our machine is equipped with a specially designed centrifugal pump to handle the thickest slurries.
Features
1. More horsepower with high efficiency: 51kw Cummins diesel engine, Industrial grade Air-controlled large torque clutch;
2. Specially design centrifugal pump: 4”x2”, capacity 73m /h;
3. Spraying distance of up to 60m from cannon;
4. Dual cannons design for spraying on both sides of the machine for hard-to reach areas;
5. Swivelable hydraulic hose reel with reel in and reel out functionality;
6. Twin mechanical agitators with helical paddle orientation and liquid recirculation;
7. Removable hoppers for mulch hatch and normal fill well;
8. Centralized electronic control to improve work efficiency;
9. Wireless remote control makes operate more easily during work.
Technical Paremeter
|
Model |
WHS0551 |
|
Power |
51KW, Cummins engine, water-cooled |
|
Tank Size |
Liquid capacity: 5000L (1320Gallon) Working capacity: 3830L(1010Gallon) |
|
Pump |
Centrifugal pump:4”x2” (10.2X5cm), 73m³/h@7bar, 25mm solid clearance |
|
Agitation |
Twin mechanical agitators with helical paddle orientation and liquid recirculation |
|
Rotating speed of mixer shaft |
0-110rpm |
|
Maximum horizontal conveying distance |
60m |
|
Spraying guns type |
Fixed standing gun and pipe gun |
|
Height of fence |
1100mm |
|
Dimensions |
4800x2200x2550mm |
|
Weight |
3350kg |
|
Options |
Stainless steel material for whole unit Hose Reel with hose Remote control unit |
Application
WHS Series hydroseeder machine and hydroseeder technology is more and more applied in road greening, expressway slope greening, erosion control, landfill cover, mine reclamation, dust control, landscaping, etc. projects and also involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.
