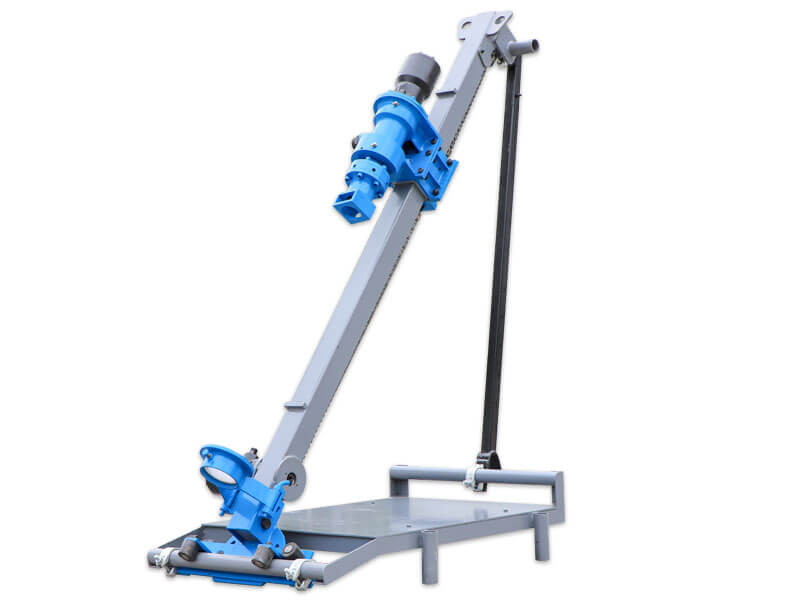

WPD100H DTH Portable hydraulic drive drilling rig machine
Description:
WPD100H DTH Portable hydraulic drive drilling rig machine is ideal for all handy drilling work; It can be used with down-the-hole hammer and drill hammer as well as for core drilling.
FEATURES
WPD100H DTH Portable hydraulic drive drilling rig machine is designed for easy mounting on any type of scaffolding and suitable for wall work. Very light and handy.
TECHNICAL PAREMETER
|
Model |
WPD100H |
|
Hole Diameter |
80~120mm |
|
Hole Depth |
30m |
|
Feed Force |
12KN |
|
Rotate Speed |
90~120rpm |
|
Torque |
1000NM |
|
Air Pressure |
0.5~0.7Mpa |
|
Air consumption |
7~8m3/min |
|
Single feeding distance |
1m |
|
Drilling Direction |
Any Angle |
|
Weight |
86Kg (Only drill machine) |
|
Dimension |
2230x560x415mm |
Diesel Drive Hydraulic station
|
Type |
BHPP15/55X2-26D |
|
Output capacity |
2x55L/min |
|
Outlet pressure |
15MPa |
|
Diesel power |
Weichai 2110 26KW |
|
Dimensions |
1760X1150X1300mm |
|
Weight |
960kg |
APPLICATION
WPD100H DTH Portable hydraulic drive drilling rig machine is widely used for the below project:
Nailing
Blast Holes
Micropiles
Core Drilling
Exploratory Drilling
Diamond Drilling
