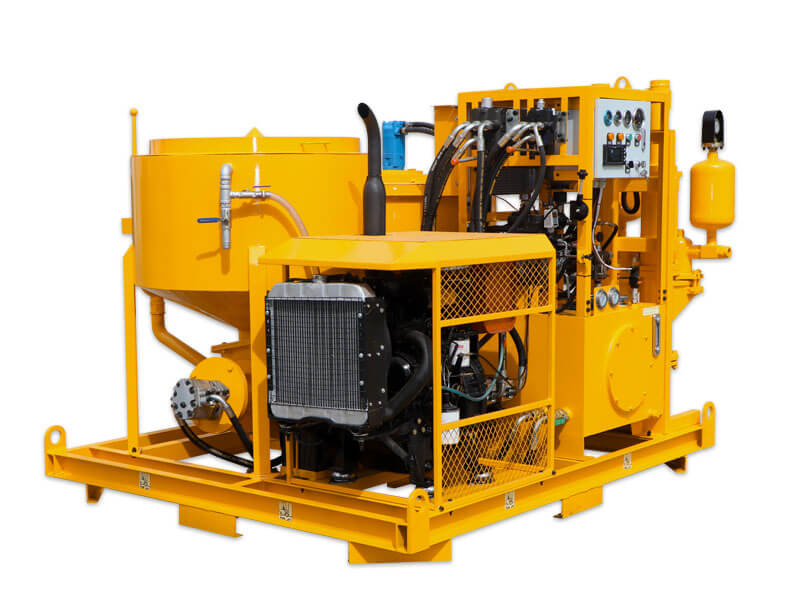

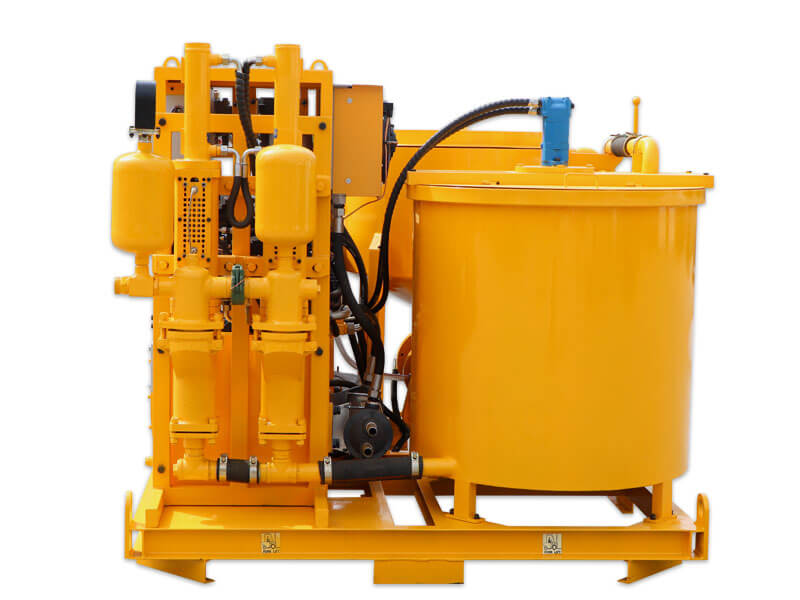

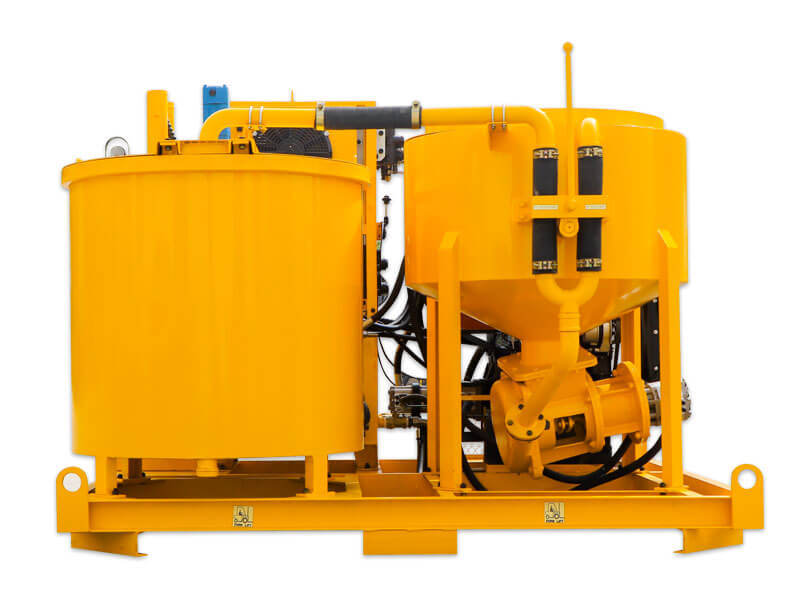

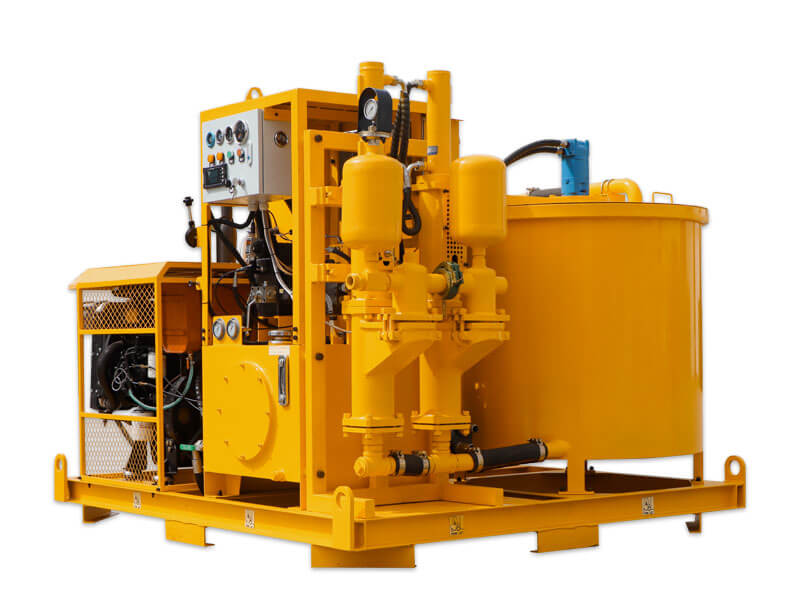

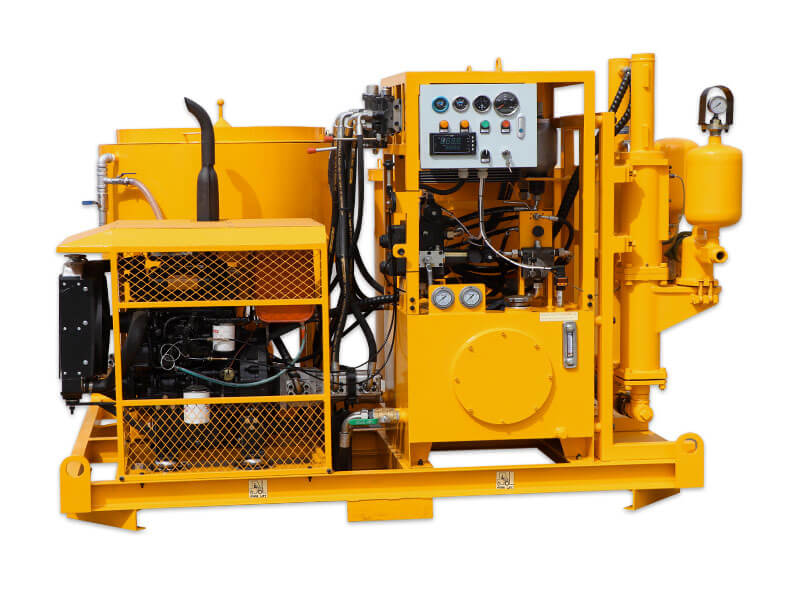

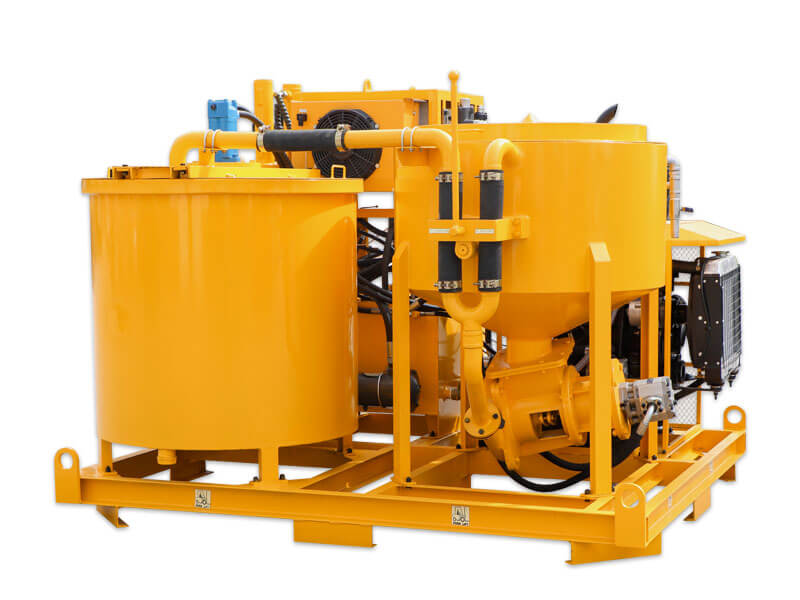

WGP400/700/80DPL-D Colloidal double-plunger grout pump with mixer and agitator

WGP400/700/80DPL-D Colloidal double-plunger grout pump with mixer and agitator is a combination of mixer, agitator and grout pump in one base frame. The grouting plant is a hydraulic drive. Grouting pressure and displacement are adjustable. Compact size and it is easy to operate. It also takes up a small space.

Mobile Phone: +86-19913803800
E-mail: sales@wodetec.com

Features

1.High-speed colloidal grout mixer

2.Double plunger pump

3.Vertical type pump with compact size

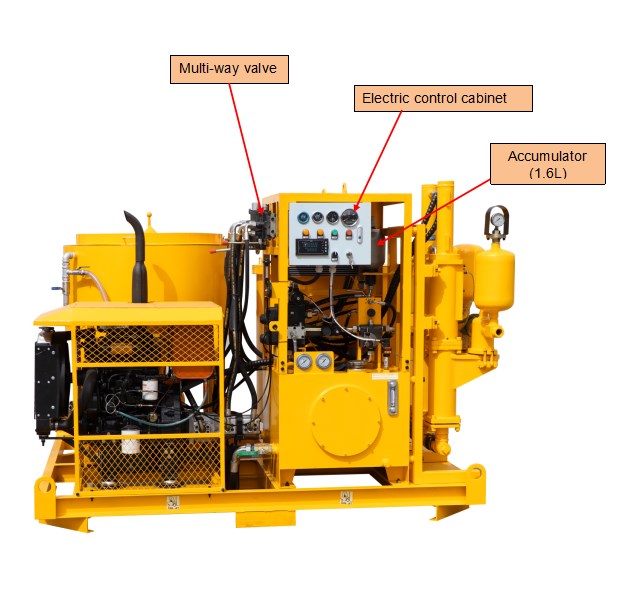

4.Hydraulic drive (safely releasing pressure when pumping block)

5.Hydraulic system with high temperature warning and protection system

6.Pressure holding system

7.Low flow pressure surge system

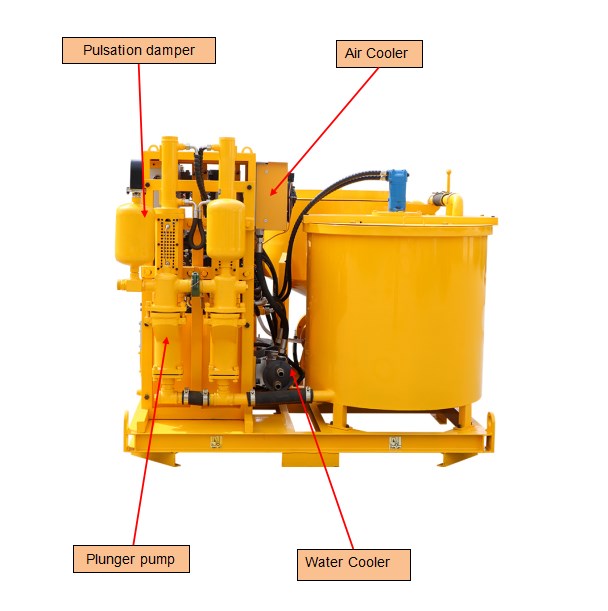

8.Air cooler and water cooler (suitable for working in tropical and sub-hot areas)

9.Up to 5mm particle size

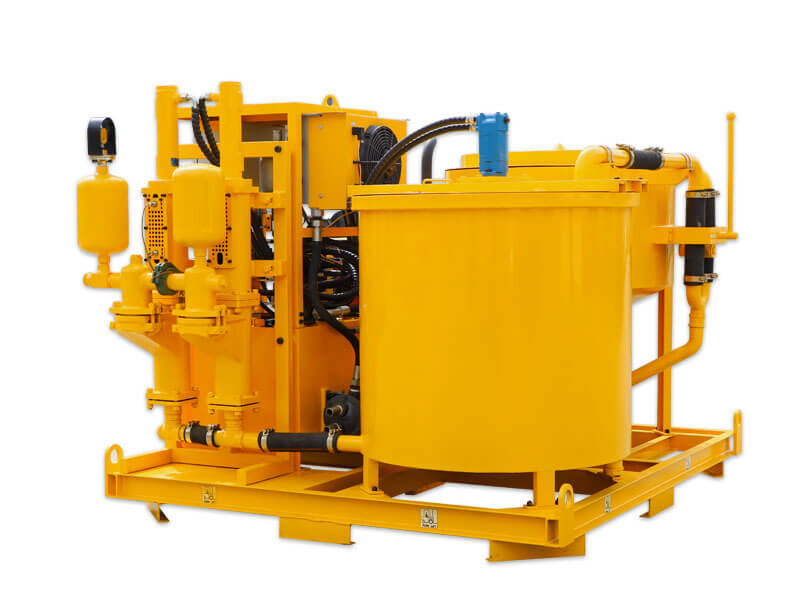

 colloidal  grout pump with mixer and agitator

colloidal grout pump with mixer and agitator

Technical Paremeter

Name

WGP400/700/80DPL-D colloidal grout pump with mixer and agitator

Mixer

Volume

400L

Circulation Capacity

1100L/min

Suitable water/cement ratio

≥0.5:1

Diesel Engine



 Power

27KW@1800rpm

Pump(vertical compact hydraulic grout pump)














Output/pressure

80L/min@5Mpa

 Diameter

85mm

 Stroke

220mm

Cycles

38 times/min

Agitator



Capacity 700L

Rated Rev

36rpm

Dimension

Dimension(mm)

2400x2150x1700

Weight(KG)

1820

We could also customize according to your demands.

Application

Colloidal double-plunger grout pump with mixer and agitator is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

compact grouting unit application
