WGP300/300/300/70/80PI-E Mortar grout mixing plants sales

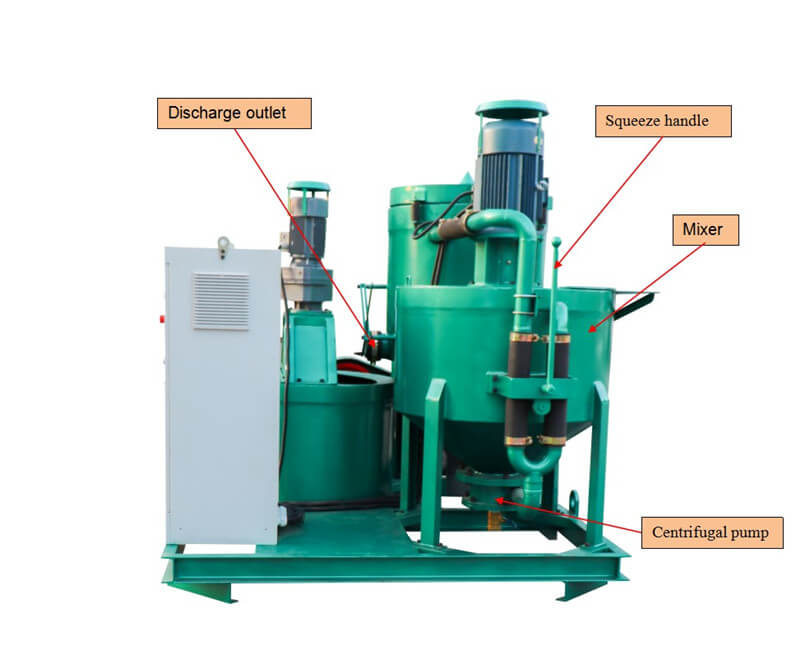

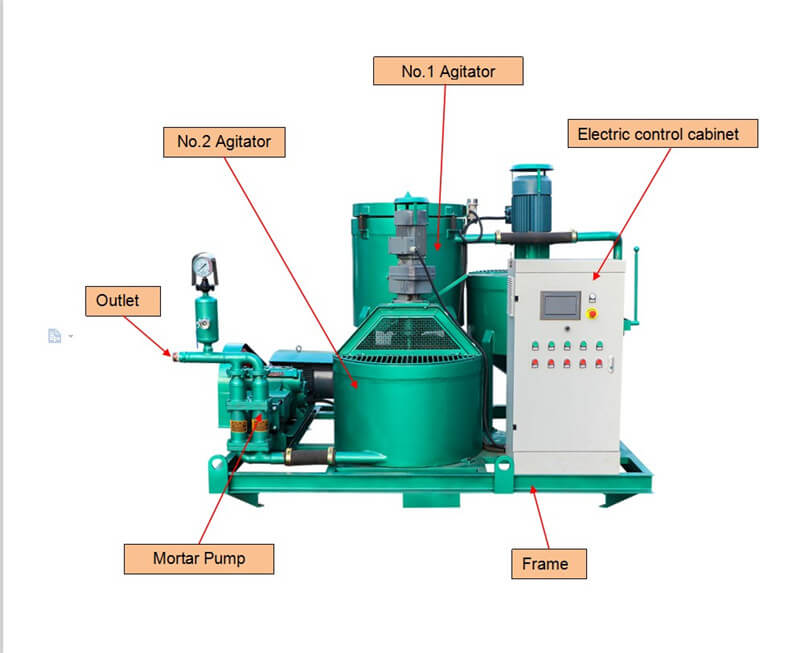

WGP300/300/300/70/80PI-E Mortar grout mixing plants sales is a combination of mixer, agitator, and mortar pump in one plant. Mortar grout mixing plant sales are mainly used for ground/underground construction, such as highways, railways, water and electricity, construction, mining, etc. Mortar grout mixing plant sales is driven by an electric motor, and mechanical plunger-type injection pump. Compact in size, easy to operate, and also takes a small place. The Grout pump adopts frequency control, so the flow is step-less adjustable.

Mobile Phone: +86-19913803800
E-mail: sales@wodetec.com

Features

1. Grouting pressure, output is stepless adjustable .
2. Simple structure, light weight, easy maintenance .
3. Continuous output with small pulse.
4. Less spare parts ensure low maintenance costs.
5. High speed vortex mixer ensures mix quickly and evenly.
6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate.
7. HMI interface, flow and pressure can be visualized.
8. Flameproof electric cabinet, protection grade IP56.
9. With CE, ISO certification.

Technical Paremeter

Name


WGP300/300/300/70/80PI-E Mortar grout mixing plants sales

Mixer





Volume

400L

 Capacity

300L

W/C ratio

0.5~1

Rate Rev.

1450 rpm

Power

7.5Kw

Pump














Type

Mortar Pump

Output

Max 70L/min

Pressure

Max 8Mpa

Power

11Kw

NO.1Agitator





Capacity

300L

Rated Rev

49 rpm

Power

2.2Kw

NO.2Agitator





Capacity

300L

Rate Rev.

36 rpm

Power

1.5Kw



Power requirements

Voltage 3 Phase 380V,50Hz

Dimension

2800×1900×1650mm

Weight



1350Kg

We could also customize according to your demands.

Application

WGP300/300/300/70/80PI-E Mortar grout mixing plants sales is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

compact grouting unit application
