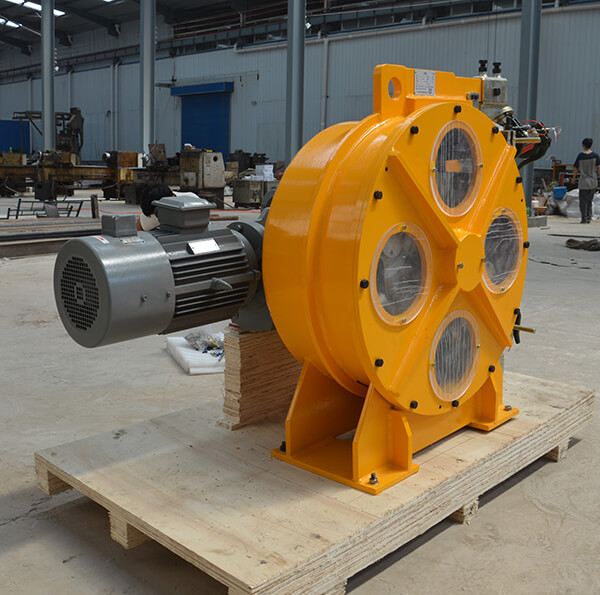

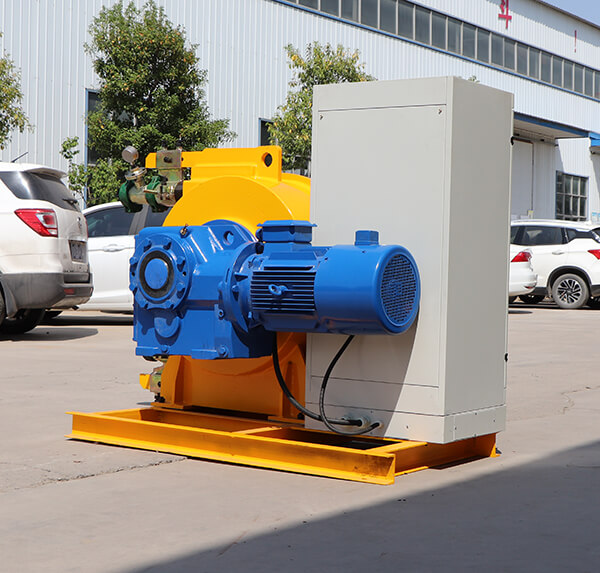

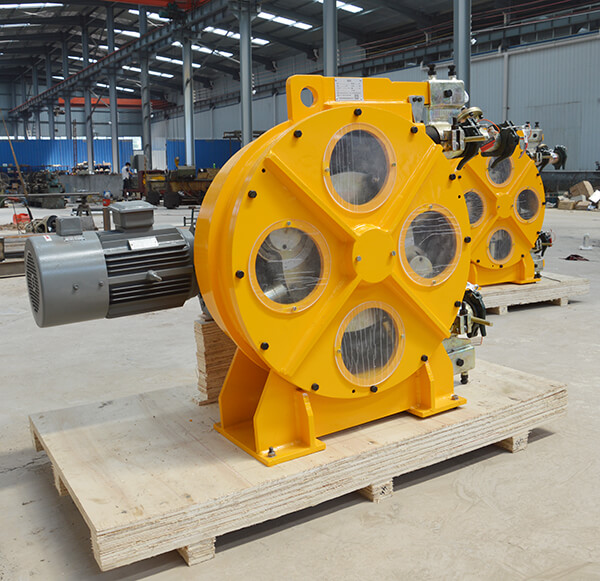

Industrial peristaltic pump for pumping sludge and mining slurry
Industrial peristaltic pump for pumping sludge and mining slurry are positive displacement pumps with low speed, high efficiency, and no noise characteristics, and have a wide range of applications. The industrial peristaltic pump working principle is mainly a pair of rollers rotating inside a lubricated pump cavity. These rollers and the wall of the industrial peristaltic pump for pumping sludge and mining slurry housing cavity push the hose together and squeeze it. As the roller rotates, the flattened section of the hose gradually moves from the inlet end of the pump to the outlet end. In this process, the liquid-filled hose will gradually return to its original shape due to its own elastic effect, the volume will increase, a vacuum will be generated to suck the material, and the liquid-filled hose will gradually be Compressed and reduced in volume. Forcibly eject and repeat the action of pumping.
Main features of industrial peristaltic pump for pumping sludge and mining slurry:
1.Low speed, no noise, can run forward and backward.
2.Unique structure, no seal, no leakage.
3.It can be self-priming and has the strong self-priming ability.
4.Simple structure and convenient maintenance.
5.Capable of transporting corrosive slurries and sludges that are rich in particles, fibers, and other impurities.
6.Low medium flow rate and no shear force. It is particularly suitable for conveying shear-sensitive materials.
7.Can transport high-viscosity media, and can also transport large-capacity three-phase mixed media of gas, liquid, and solid.
8.By adjusting the speed of the pump, the flow rate can be adjusted without changing the pump outlet pressure.
When using industrial peristaltic pump for pumping sludge and mining slurry, the following should be noted:
1.If the industrial peristaltic pump for pumping sludge does not work, you can loosen the pressure block of the pressure tube of the peristaltic pump to extend the service life of the pump tube.
2.When choosing an industrial peristaltic pump for pumping sludge, the pump speed should be as low as possible below 300 rpm when the discharge flow is met.
3.The head of the industrial peristaltic pump for pumping sludge should use dedicated tubing, other interfaces can use common tubing.
4.The inlet of the peristaltic pump pipe should be as short as possible, and the joint and diameter of the peristaltic pump pipe should not be less than the pipe diameter of the peristaltic pump head.
5.When using, the pump tube and debris of the pump tube should be carefully cleaned, especially the surface of the pump casing that is in contact with the pressure block of the pressure tube.
More details about the industrial peristaltic pump for pumping sludge, please contact us! Email:firstname.lastname@example.org
