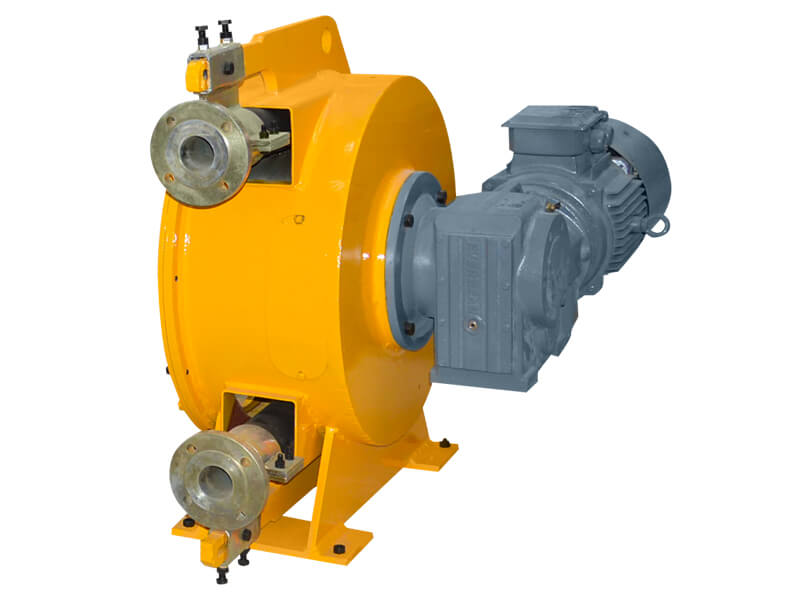

WH65-680 peristaltic pump

Description:

WEC heavy-duty industries hose pump is a kind of peristaltic pump. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within.

The tube’s restitution after squeezing produces a vacuum that draws fluid continuously into the tube.

This creates a gentle pumping action that doesn’t cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube.

The pump employs a rotor with rollers mounted on it that continually compress and occlude some portion of the tube.

This action moves the fluid through the tube with a constant rate of displacement for each revolution of the rotor, enabling a precise measurement of the volume of fluid pumped through the tube.

Zhengzhou Wode Heavy Industry Co., Ltd. Zhengzhou Wode Heavy Industry Co., Ltd. Zhengzhou Wode Heavy Industry Co., Ltd. Zhengzhou Wode Heavy Industry Co., Ltd.
Mobile Phone: +86-19913803800
E-mail: sales@wodetec.com

Features

 industrial hose pump

WH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

 industrial hose pump (squeeze pump)

squeeze pump

Technical Paremeter

Type

WH65-680B

Max. ouput

8m3/h

Rotation

26 RPM

Squeeze hose ID

65mm

Working pressure

10 bar

Voltage

3 phase,380V, 50HZ

Power

7.5 KW

Application
