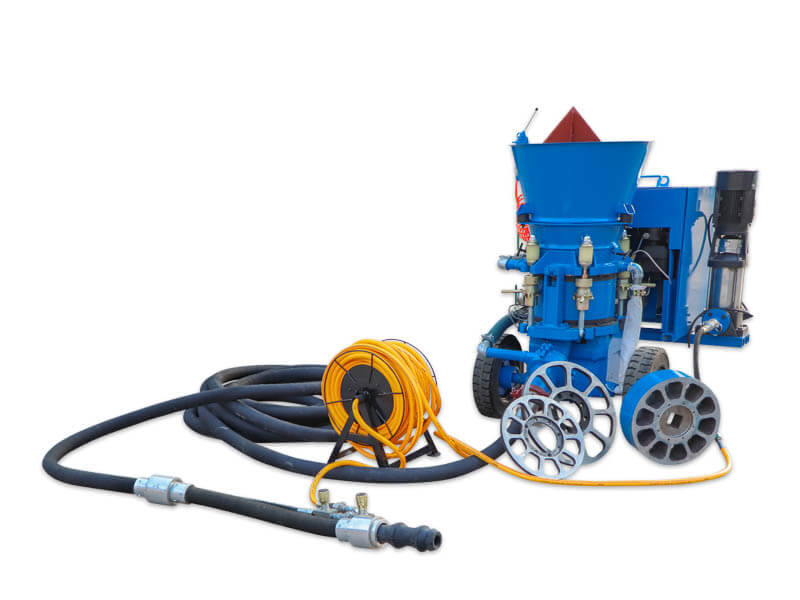

WZ-3ER/S Refractory concrete gunning machine for sale

Description:

WZ-3ER/S Refractory concrete gunning machine for sale is specifically designed for refractory dry-mix shotcrete applications, as well as for concrete shotcrete application.

WZ-3ER/S Refractory concrete gunning machine usually includes additives to make it stickier. Gunite is applied by a special machine that uses compressed air to push the dry (or pre-dampened) gunite through a hose and to the target. Water (or additive) is added at the nozzle to moisten the dry mix so it sticks to the surface.

With this WZ-3ER/S refractory concrete gunning machine for sale,you can get low dust and high performance spraying flow in nozzle. Compared with our market popular WZ-3ER, This WZ- 3ER/S refractory gunning machine is a new version.

Mobile Phone: +86-19913803800
E-mail: sales@wodetec.com

Features

WZ-3ER/S Refractory concrete gunning machine for sale is straight chamber rotor type refractory gunning machine.

Refractory concrete gunning machine for sale Refractory concrete gunning machine for sale

Refractory concrete gunning machine for sale

Refractory concrete gunning machine for sale







New!!! Pre-dampening Nozzle!

 1. Low rebound, low dust.

2. Reduce additive water amount.

3. Improve refractory compactness and strength.

 Refractory concrete gunning machine for sale

Technical Paremeter

Rotor volume

6.3L

Rotor Speed

4-8r/min

Max. Output

1.5-3m3 /h

Max. Horizontal Conveying Distance

200m

Max. Aggregate Size

Φ10 mm

Conveying Hose Inner Diameter

38/32mm

Operating air Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

6~7m3/min(215-250CFM)

Material Charging Height

1.1m



Rotor Motor

Power

4kW

Voltage

3 phase,380V,50Hz

Water pump

Output:26L/min; Pumping head:70m; Motor:1.5kw

Automatic lubrication

Volume

2L

Power

24V, 50w

Overall Dimension(L×W×H)

1600×1000×1300mm

Weight

665kg



Application

WZ-3ER/S Refractory concrete gunning machine for sale finds its main applications in the spraying of refractory concrete mixtures during the lining of metallurgic and glassworks furnaces, heating plant boilers, coke-oven batteries, cement factory etc.; in the metallurgic, chemical and glass working industries.

 Refractory concrete gunning machine for sale Refractory concrete gunning machine for sale

 Refractory concrete gunning machine for sale Refractory concrete gunning machine for sale
