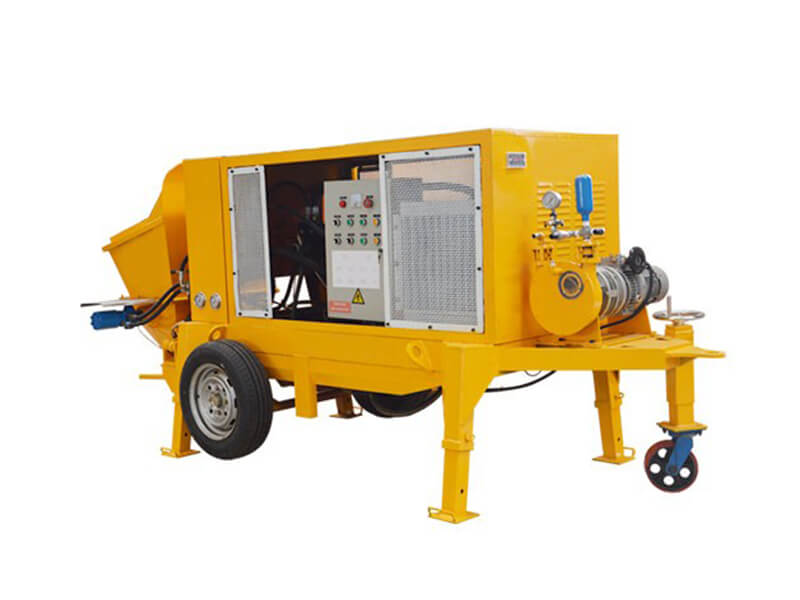

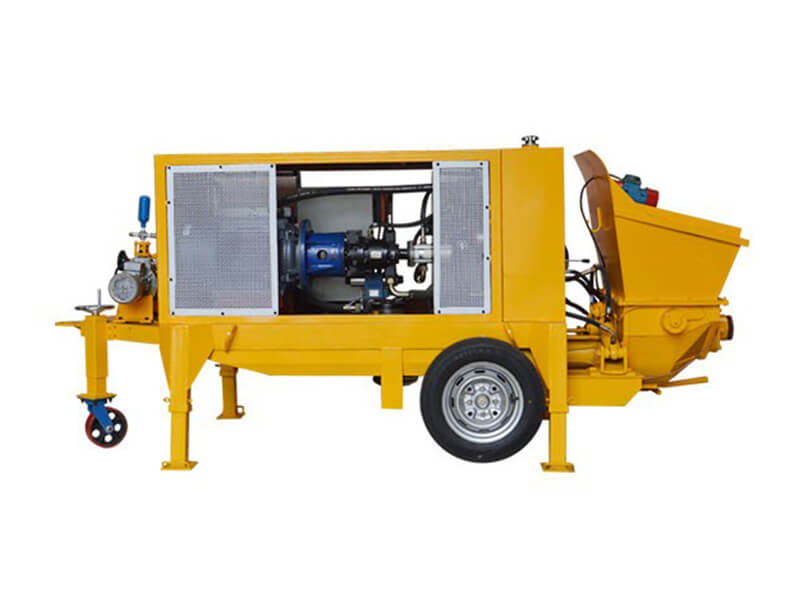

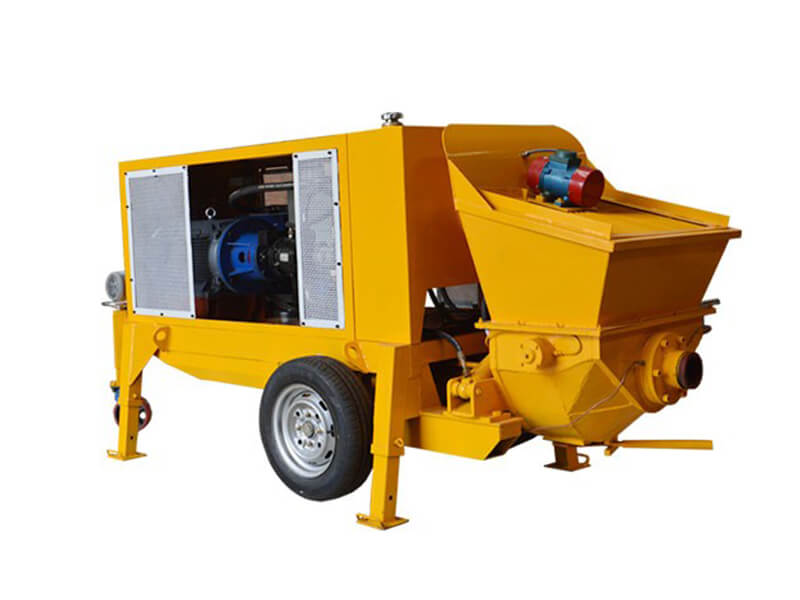

WPS-7A capacity adjustable mini concrete pump
Description:
WPS-7A capacity adjustable mini concrete pump use hydraulic pumping S valve structure, two oil cylinders Reciprocating motion alternately to pump concrete from conveying pipe to nozzle, Add compress air to wet shotcrete machine outlet and add A percentage of the accelerator at nozzle, concrete slurry be sprayed to surface directly.
WPS-7A capacity adjustable mini concrete pump could be adjusted continuously: main oil pump is variable displacement plunger pump, spraying volume could be adjusted freely. Accelerating adding quantity could be adjusted continuously: according to concrete spraying volume adjust step-less.
Wodetec equipped self-lubrication system for the wet shotcrete machine to automatic lubrication for main sealing parts, thus could lengthen wearing parts working life greatly.
Features
1. Use S valve reversing, good sealing performance, longer working life;
2. Equipped floating wearing ring on S valve, could self-compensating wearing;
3. High outlet pressure, could meet the demands of concrete pumping for high building;
4. Hydraulic system adopt air-cooler, easy operate, don’t need water;
5. With reverse function, reduce pipe plugged;
6. Main oil pump is variable displacement plunger pump, spraying volume could be adjusted freely.
7. Equipped self-lubrication system to automatic lubrication for main sealing parts, lengthen wearing parts working life;
8. PLC control, With wireless remote control, easy to operate;
9. With guide pulley, easy to move, location;
10. Accelerating adding quantity could be adjusted continuously.
Technical Paremeter
|
WPS-7A |
|||
|
Item |
spec |
unit |
Remarks |
|
output |
5-15 |
m3/h |
|
|
Max. pressure |
8 |
MPa |
|
|
Distribution valve type |
S valve |
With accumulator |
|
|
Stroke x cylinder ID |
550×120 |
mm |
|
|
Hopper volume |
210 |
L |
With mixer and vibrator |
|
Power |
22 |
Kw |
|
|
rotation |
1450 |
r/min |
|
|
Main oil pump |
30-50 |
cc/Rev |
constant power control, Manual variable |
|
Hydraulic oil tank volume |
160 |
L |
|
|
Acceptable max. aggregate size |
20 |
mm |
|
|
Suitable concrete slump |
8-15 |
cm |
|
|
Dimension |
3500x1360x1530 |
mm |
|
|
Weight |
1515 |
Kg |
|
Application
WPS-7A wet shotcrete machine used for wet concrete spraying in mine, tunnel, culvert, metro, hydropower engineering, underground construction, slope protection etc. or for filling, grouting pumping concrete mortar etc.
