Refractory castable spray machine in the tunnel

2022-03-23 16:50:33

Refractory castable spray machine in the tunnel is a new type of high-efficiency refractory shot cleat machine that can be used for spray molding or repair of refractory materials in different types of industrial furnaces and linings: various slope protection and greening. Structure, soil transport, and spray. Refractory castable spray machine in the tunnel has a reasonable structure, a humane design, reliable performance, convenient operation and maintenance, and a long service life. There is no dust during work, there is little noise, and the rebound rate is low. This fireproof gun machine castable significantly reduces the concentration of dust near the machine and nozzles, improves the working environment for workers, and reduces pneumoconiosis caused by dust.

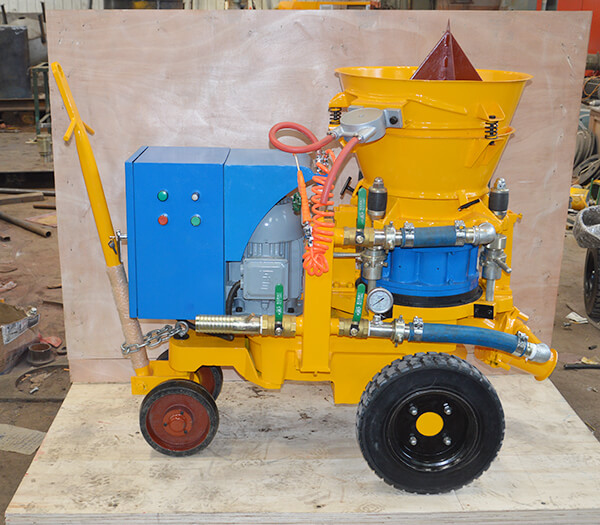

refractory castable spray machine in the tunnel



Refractory castable spray machine in the tunnel is a continuous operation rotor spray gun spray machine with a wide range of production capacity and has been widely verified in the refractory industry. Castable for radiation modules, the refractory castable spray machine is used in places where high requirements are placed on the dust-free, low-wear spray gun mechanical technology of dry refractory concrete.

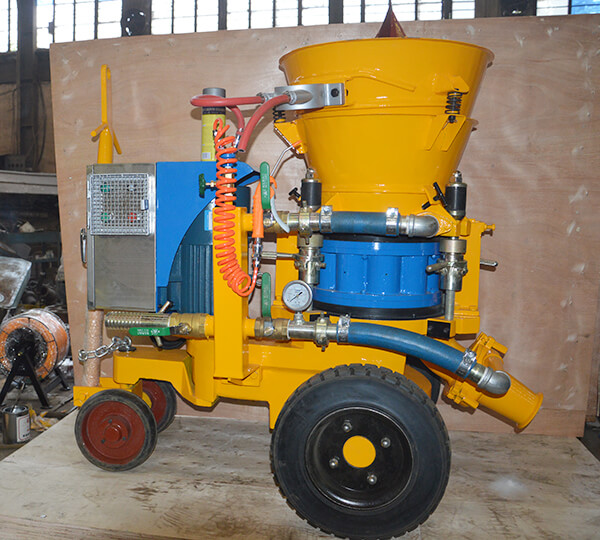

refractory castable spray machine in the tunnel

When the refractory spray gun is operating, the spray gun material to be processed is fed to the rotor via the hopper and star agitator. The rotor is fixed between the two sealing discs and driven by a rotating current or compressed air motor. The material for the spray gun is sent to the outlet in a so-called trickle manner and blown into a hose or pipe through compressed air.

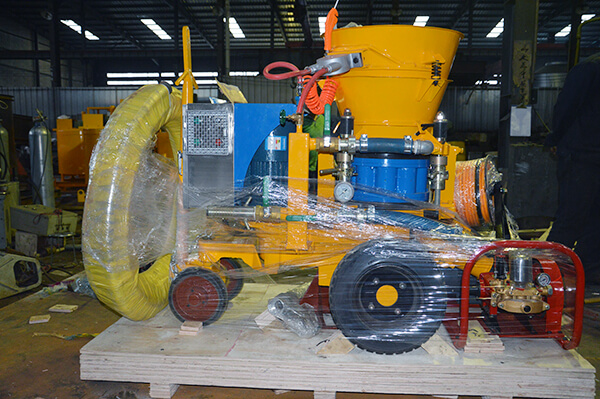

refractory castable spray machine in the tunnel

Refractory castable spray machine in the tunnel has the following features:

  1. Refractory castable spray machine in the tunnel has mixing, transporting, and spraying functions.
  2. Concrete placement quality is good, construction speed is fast, and labor can be saved.
  3. Bombardment metallurgy and industrial furnaces are widely used in steel mills.

Refractory castable spray machine in the tunnel is a stereotyped product with excellent quality and durability. We have a good stock of fragile parts, rotating plates, bonding plates, spray guns, and other accessories.

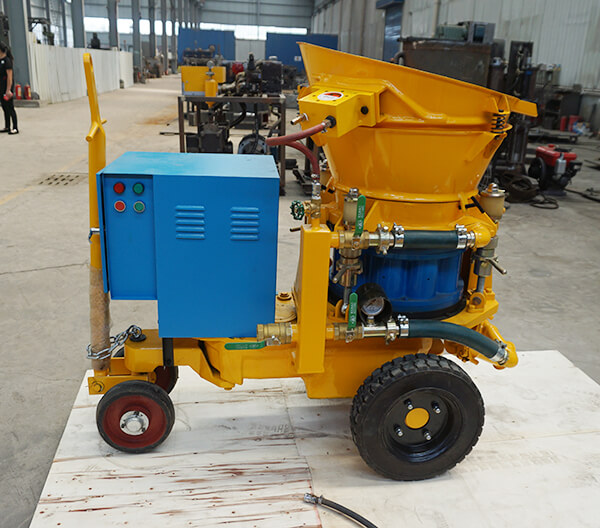

refractory castable spray machine in the tunnel

When using the refractory castable spray machine, you need to keep in mind the following:

1.Split spraying requires re-spraying after the previous final hardening of the concrete. If there is excessive excavation, cracks, or low depressions, it should be sprayed first to smooth and then spray normally.

  1. It is strictly forbidden to point the nozzle at personnel.
  2. During the spraying process, if the pipe is clogged, wind or power outage, etc., the watergate should be closed immediately and the nozzle should be placed down to prevent inflow into the feed pipe. When dealing with clogged pipes, the feed pipe should be fed using the percussion method.
  3. The atomizer should wear a gas mask, latex gloves, and eyeglasses.
  4. The air intake of the refractory castable spray machineis well sealed to prevent dust from being blown off by air leaks. The exhaust port is not blocked, and the exhaust gas is discharged smoothly.
