High operating efficiency cement grout station

2022-10-31 22:17:52

High operating efficiency cement grout station includes grout mixer, grout agitator and grout pump, and the main mixing and injection materials are cement, sand and water. Mainly used for highways, railways, hydropower, construction, mining and other aboveground and underground construction.

 High operating efficiency cement grout station

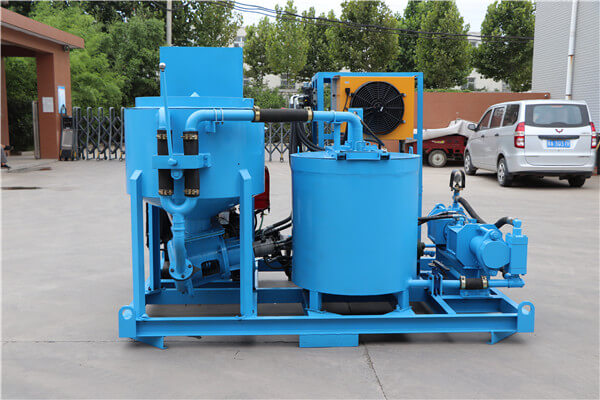

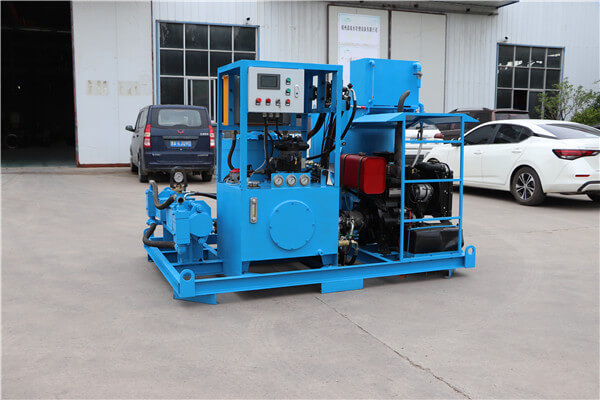

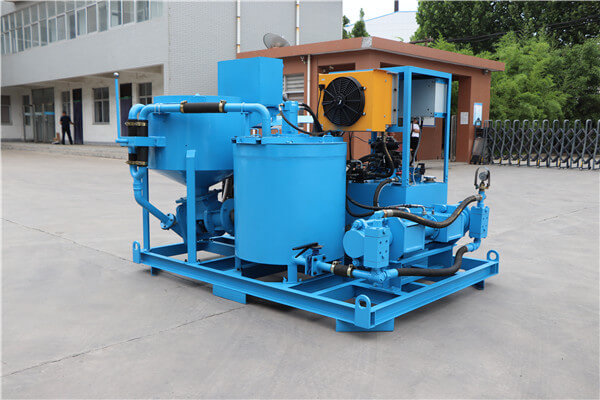

High operating efficiency cement grout station combines a mixer, an agitator and a grout pump in one he base frame. Mainly used for producing bentonite slurry, cement slurry, etc.

 If the output of this high working efficiency cement grouting station is not satisfactory, we can also customize it according to your needs. The grouting plant is hydraulically driven by an electric motor. Grout pressure and displacement are adjustable. Compact size and easy to operate. It also occupies a small space.

 High operating efficiency cement grout station

SPECIAL DESIGN: Double plunger pump and holding pressure system are used so that the pump stops automatically and maintains a very small pressure impulse (1-4bar at 50bar grouting pressure) to ensure the grout hole is fully be satisfied.

The principle of operation is cement or bentonite, water is retained in the mixer by the turbulence generated within the pump casing. This high shear turbulence separates the cement or bentonite particles, resulting in a fully hydrated suspension. As soon as the mixing process is finished, the mix is ​​transferred to the stirrer. A slow stirring paddle keeps the grout from settling out of suspension and removes air bubbles from the mixture. Each machine incorporates a volume-matched mixer and pump to allow virtually continuous operation once work is started, along with an agitated storage tank.

 High operating efficiency cement grout station

Features of  high operating efficiency cement grout station :

1.High speed colloidal grout mixer

2.What is the liquid level in the mixer tank?

3.Double plunger pump

4.Compact size vertical pump

5.Hydraulic drive (safely release pressure when pumping blocks)

6.Hydraulic system with high temperature warning and protection system

7.Holding pressure method

8.Low flow pressure surge system

9.Air and water coolers (suitable for work in tropical and subtropical areas)

10.Particle size up to 5mm

We have developed a full series of grouting plants, grouting pumps, including piston type, plunger type, double piston type and hose type. Grout mixer volume from 200L to 1200L, grout agitator volume from 300L to 3000L, pump flow rate from 1 to 300L/min, pressure from 1 to 100 bar. Power and diesel power are customizable. If you have any other questions, please contact us.
