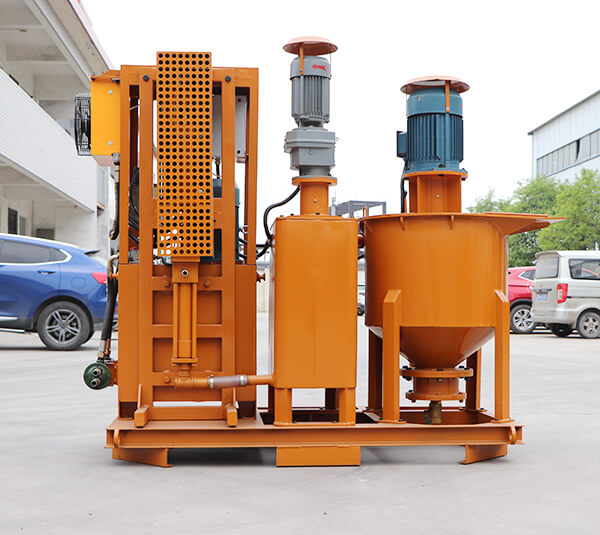

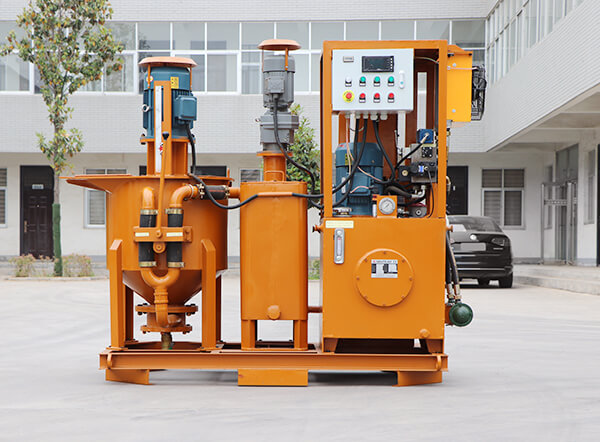

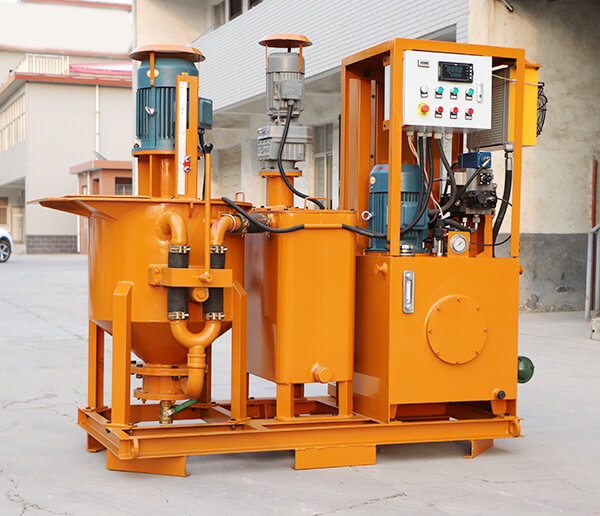

High-efficiency grout mixing station plant in Russia
High-efficiency grout mixing station plant in Russia was one high-shear grout mixer, agitator, and grout pump all in one. High-efficiency grout mixing station plants in Russia are primarily used for above-ground and underground engineering construction such as roads, railroads, hydropower, buildings, and mines, with water, cement, sand, bentonite, fillers, clay, silicates, and other media. Next, the plunger grout pump provides grout/grout injection for waterproofing and plugging, tunnel lining, foundation, rock formation reinforcement, gap filling, and more. This series of grout pumps have the advantages of compact construction, high grout pressure, and a wide range of applications.
As a professional manufacturer of high-efficiency grout mixing station plants, we can provide solutions suitable for tunneling, micro tunneling/pipe jacking / directional drilling, anchors, dam construction, and diaphragm/slurry walls, and soil mixing (deep mixing). High-efficiency grout mixing station plant in Russia including piston type, plunger type, and squeeze hose type. Diesel power and power are provided for better use in a variety of conditions.
High-efficiency grout mixing station plant in Russia is a combination of a mixer, agitator, and grout pump in one plant. The special mixing effect of cement or bentonite with water is accumulated in the mixer by the high turbulence generated in the pump casing. This turbulence with high shear forces separates cement or bentonite particles, resulting in a fully hydrated suspension.
As soon as the mixing process is finished, the mixing is transferred to the stirrer. A slow stirring paddle prevents the grout from settling out of the suspension and removes air bubbles from the mixture. Each machine has a built-in mixer and pumps with matching capacities, along with a stirred storage tank, which enables virtually continuous operation once work is started.
Currently, Wodetec has developed a full series of jet grout mixing plant manufacturers, including piston type, plunger type, and hose type. The mixer capacity is 200L to 800L, the agitator capacity is 300L to 1200L, the pump flow rate is 0 to 130L / min, and the pressure is 0 to 100 bar.
High-efficiency grout mixing station plant in Russia has the following advantages:
1. Continuous output with a small pulse or kick or jerk
2. Both grout injection pressure and flow rate can be adjusted steplessly.
3. High-speed vortex mixer ensures uniform and quick mixing.
4. Grout mixer and agitator switch with squeeze handle, easy to operate, safe, and reliable.
5. Motor with overload protection function,
6. Hydraulic system with oil temperature overheat protection.
7. Since there are few spare parts, maintenance costs can be kept low.
In a nutshell, it’s a single jet grout mix plant for sale with features such as simple structure, compact size, lightweight, and easy maintenance.
Please send an answer and request to firstname.lastname@example.org for a better type and best price!
