Gunning machine for refractory work in cement industries

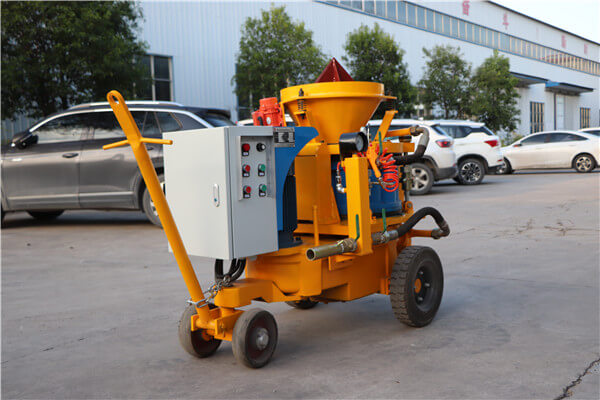

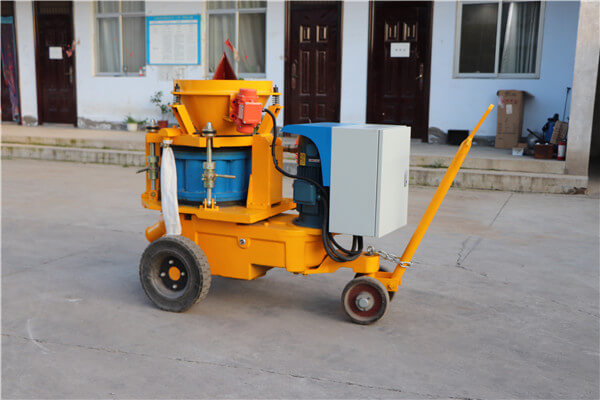

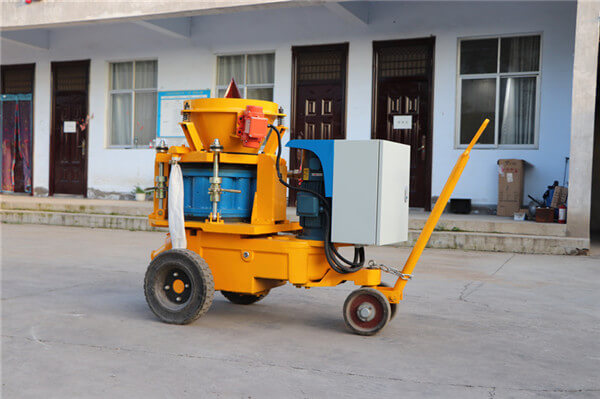

Gunning machine for refractory work in cement industries is a special device for spraying refractory materials, which mainly consists of parts such as hoppers, stirrers, discharge elbows, and rotors. The motor drives the rotor to rotate the reducer. The agitated material is loaded into the rotor and delivered from the discharge elbow by the gas pipeline of the gas system. Then, with the help of the auxiliary air inlet pipeline of the air system, the mixed material passes through the supply pipe.
Gunning machine for refractory work in cement industries is widely used for spraying refractory materials, refractory gunning machines for boilers can also be used for casting in refineries and petrochemical plants. Our gunning machines for refractory work is mainly divided into electric drive and pneumatic drive, and the displacement can also be customized.
The rated output of the wZ-5ER gunning machine for refractory work is 5m3 / h, driven by an electric motor, and has a maximum. The horizontal transport distance is up to 100m. The total size is 15 mm. With this WZ-5ER, you can get a high-performance spray flow with less dust in the nozzle.
WZ-3ER gunning machine for refractory work in cement industries, rated output 3m3 / h, electric motor drive, maximum. The horizontal transport distance is up to 100m. The aggregate size is 10 mm. Equipped with an ABB frequency converter, it can control the rotation speed of the rotor body and realize variable output from 1m3 / h to 3m3 / h.
The gunning machine for refractory work in cement industries main advantages: 4-point elastic compensation and compression, excellent sealing effect, reduction of dust next to the machine, long life of worn parts: slow and fast eddy current is used to overcome stickiness Mining sprayer Knots, pipe clogging, pulse breakage, and other problems, material flow is uniform, continuous and stable: new type of nozzle, discharge elbow device to improve spraying effect, mine spraying Machines with low repulsion and high spray layer quality. The gunning machine for refractory work in cement industries chassis can be assembled into tire type, skid type, and various wheel gauge types.
Gunning machine for refractory work in cement industries is also equipped with corresponding accessories to facilitate on-site construction applications. High-pressure water pumps are used to supply high-pressure water to refractory granite machines and spray water through the water ring holes. Equipped with a new pre-humidity nozzle assembly, needle valve control supplies high-pressure water to the two channels. Mix water with water for the best spray effect. In addition, the fireproof gun machine hopper equipped with the OLI vibration motor exhibits higher vibration force and superior vibration effect than general air vibrators.
There is also pneumatic drive gunning machine for refractory work in cement industries, with customizable outputs. If you are interested in gunning machines for refractory work in cement industries, please contact us and we will recommend the best product.Email:firstname.lastname@example.org
