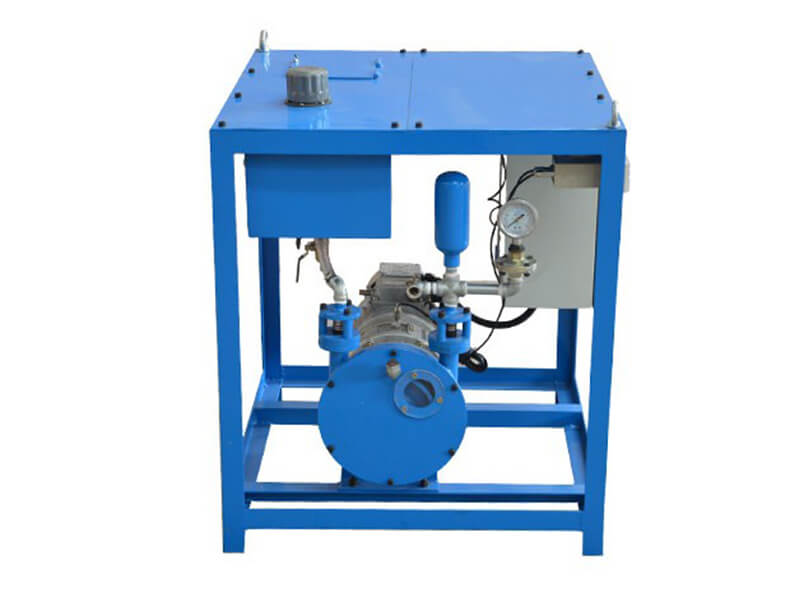

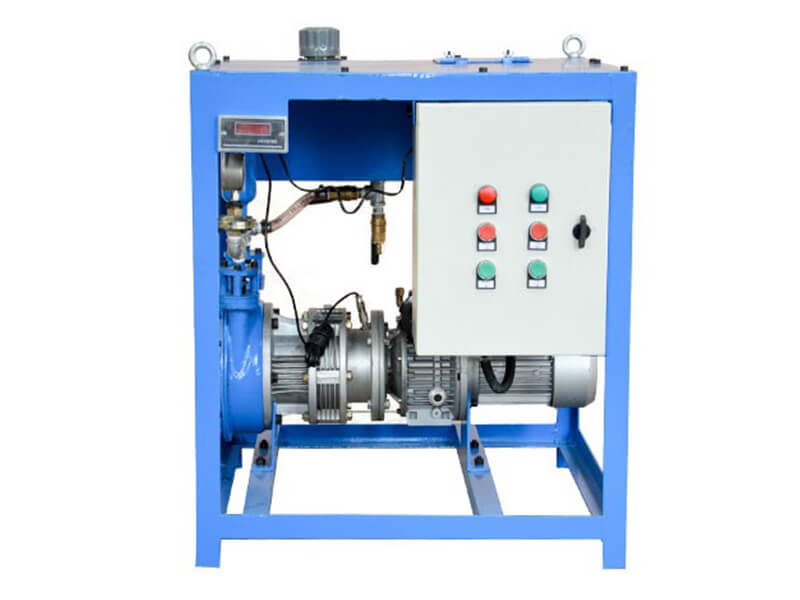

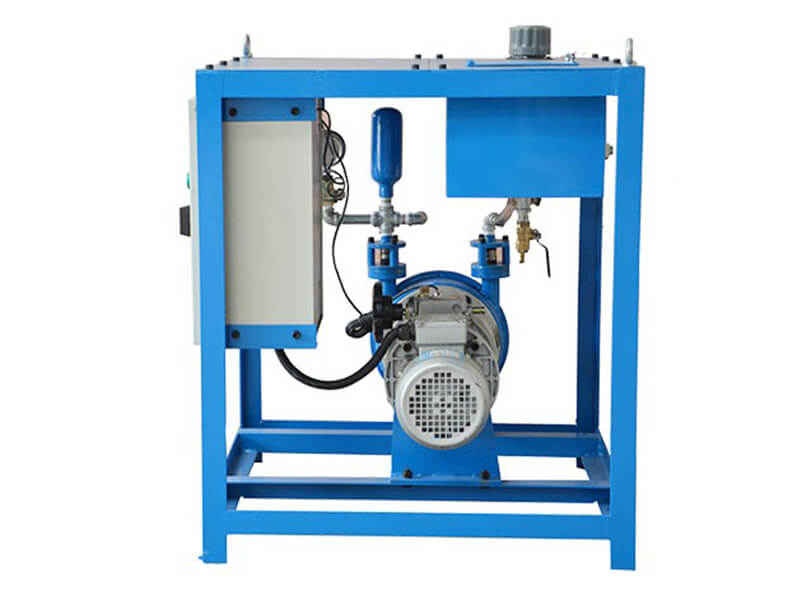

WH10-200 Dosing Pump (Hose Pump)
Description:

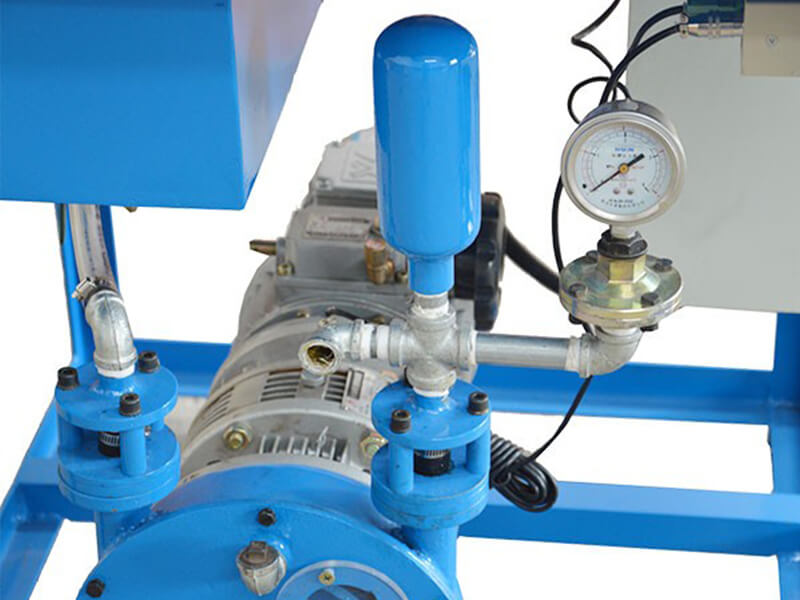

WH10-200 series hose pump (dosing pump) consists mainly of pump house, squeezing shoe, driving plate, motors, variable speed gear box, reinforced hose etc.
The squeeze hose is U-shaped in the pump house, by shoe squeeze hose formed pressure to achieve slurry transport; simple structure, easy to maintain, dry-run without damage, low speed, no noise.
Flow rate can be adjusted stepless within the range of 0-100%, flow stability accuracy can up to ± 1%, specially suitable for viscous slurry dosing and pumping etc.
Features
1. No valves, perfect pump for high viscosity fluids, simple structure, easy to clean.
2. High measurement accuracy, repeatability ± 1%.
3. Self-priming ability, suction height.
4. Uniform continuous pumping, pulse small
5. No bear, easy to clean and maintain.
6. Less wear parts, the only hose is wear part, low cost.
7. Flow infinitely adjustable for different requirements.
8. Just replace the different hose, can pump the different material.
Technical Paremeter
|
Description |
Item |
|
Dosing Pump |
WH10-200 |
|
Speed |
12-60rpm |
|
Output |
60-300L/h |
|
Pressure |
6bar |
|
Hopper Capacity |
20L |
|
Power |
0.75Kw |
|
Reducer Model |
MBNL07-Y0.75-XL3-17-SX-B5 |
|
Overall Dimension |
700×700×850mm |
|
Weight |
75kg |
Application
