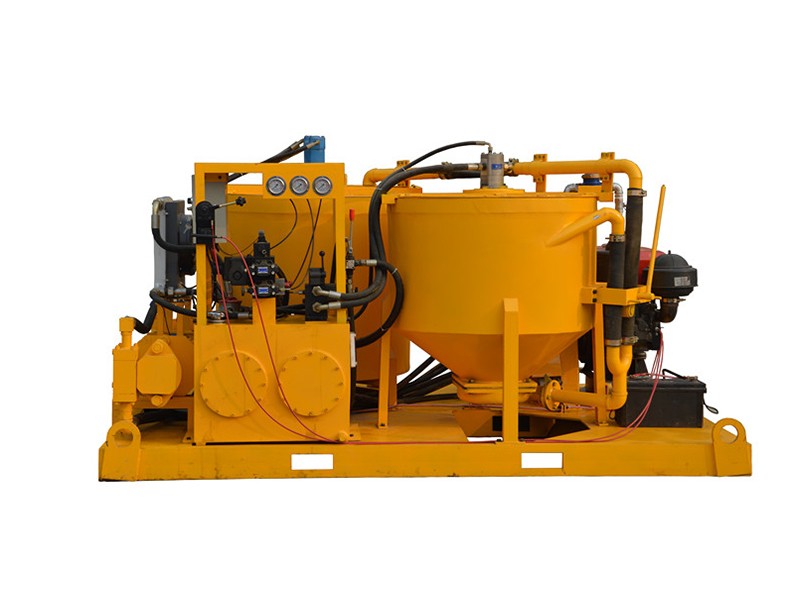

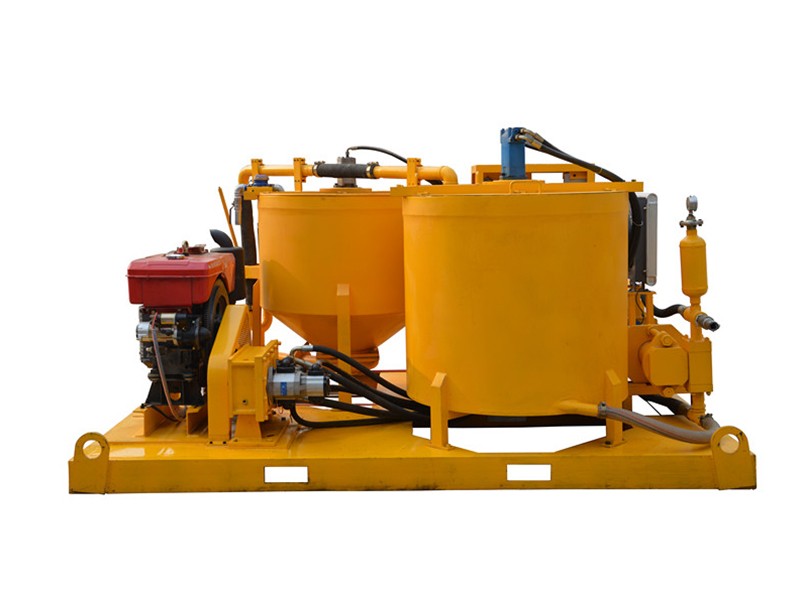

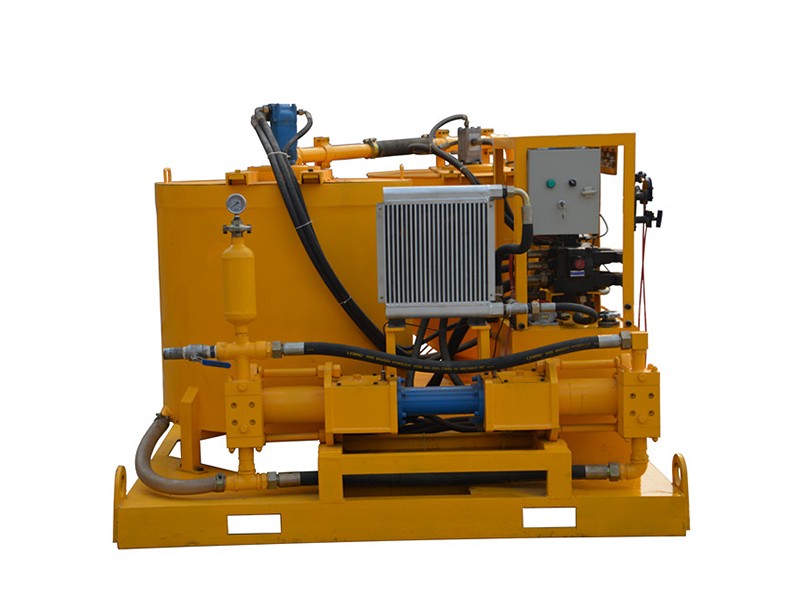

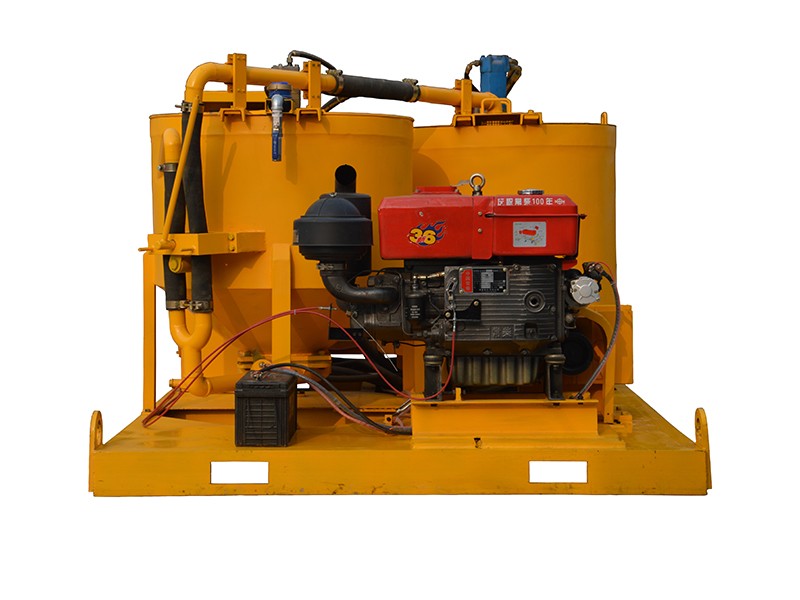

WGP500/700/100PI-D dam foundations grout plant station
Description:
WGP500/700/100PI-D dam foundations grout plant station is combination of mixer, agitator and hydraulic piston grout pump in one plant. This grout plant station for dam is mainly used for ground and underground engineering such as dam, highway, railway, hydropower, construction, mining.
The grout plant station for foundations is hydraulic drive with compact structure, convenient operation, less space occupation. The output is stepless variable.
This cement grout plant is combination of mixer, agitator, grout pump, hydraulic power pack, diesel engine, electric control, squeeze handle, etc. The worldwide famous brand hydraulic elements ensure the safety. The diesel is Changchai EH36 diesel which ensure the power supply.
After the slurry is completely mixed by mixer, then is pumped into agitator. And the pump suction is connected to the outlet of agitator. To turn on this grout pump, then to start to grout. Due to this grout plant station is combination of mixer, agitator and grout, so the continuous grout is available.
Features
1. Butterfly valve of mixer and agitator.
2. Operation and maintenance of the grout plant station for dam foundations are simple.
3. Dam foundations grout plant station is with ISO, CE certificate.
4. Compact size, grout injection plant is combination of mixer, agitator and piston grout pump in one base frame.
5. Yuken relief valve and directional valve for hydraulic system of grout pump.
6. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.
Technical Paremeter
|
Type |
WGP500/700/100PI-D grout plant station for foundations |
|
Diesel engine |
25kw/36HP |
|
Rotating speed of engine |
2200r/min |
|
Dimensions |
2900*1960*1550mm |
|
Weight |
1790kg |
|
Mixer |
|
|
Capacity |
500L |
|
W/C ratio |
0.5-1 |
|
Rated Rev. |
1500rpm |
|
Agitator |
|
|
Volume |
700L |
|
Rated Rev. |
36rpm |
|
Pump |
|
|
Type |
Hydraulic Two Cylinder Piston Pump |
|
Pressure |
0-50bar |
|
Output |
0-100L/min |
Application
WGP500/700/100PI-D grout plant station can be used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundation, bridge decks, deep well casing, slope line grouting, etc.
If you don’t know which type grout plant station is suitable for your project, you can help us to confirm the following points:
1. What is the pressure of the grout plant station do you demands?
2. What is the flow of the grout plant station do you demands?
3. Would you like the grout plant stationp with electric motor or diesel engine? If you like electric motor, please confirm the voltage at the worksite.
