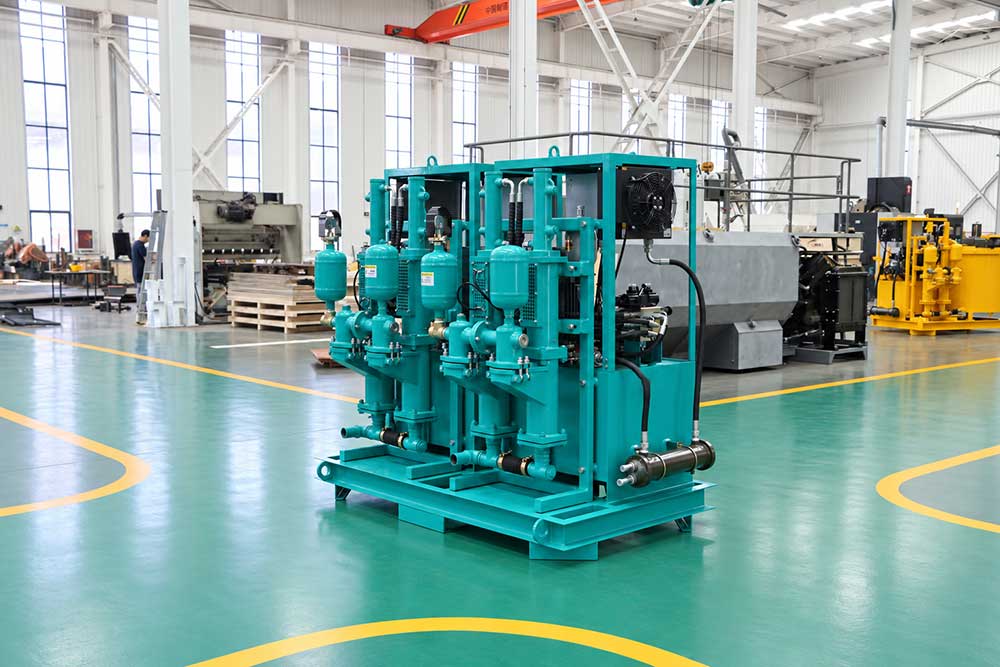

On August 28, Henan Wode received a request for
high-pressure grouting pump for an overseas bridge project. The project utilizes large-diameter, deep-foundation cast-in-place piles, requiring controlled grouting at the pile base following the completion of pile construction. Site requirements dictate stable regulation of grouting pressure within the 10–30 bar range, along with the provision of piping, valves, pressure monitoring systems, and connection accessories tailored to actual construction needs.
Unlike standard foundation grouting, deep pile-base grouting is not simply about achieving the highest possible pump pressure. For deep piles exceeding 60 meters, the pump outlet pressure is not identical to the actual grouting pressure at the pile base. Factors such as the grout's own weight, the length and diameter of the delivery pipeline, the number of elbows, frictional resistance, and the status of the grouting channel all influence the effective pressure ultimately exerted on the pile base. Therefore, when selecting a high-pressure grouting pump for this application, one must evaluate pressure control capabilities, flow rate stability, and pressure losses across the entire delivery system.
Bridge pile-base grouting typically requires a gradual, staged increase in pressure rather than an immediate jump to maximum pressure upon startup. During construction, fluctuations in pressure and flow rate provide insights into whether the grout is successfully entering the soil at the pile base, whether there are anomalies in the grouting channel, and how the formation's grout absorption capacity is changing.
A
high-pressure grouting pump suitable for this application should possess the following capabilities:
1. Continuously adjustable pressure
Capable of smooth pressure ramping within the target range, allowing operators to adjust the grouting pace based on grout absorption rates and pressure feedback.
2. Stable operation at low flow rates
As resistance at the pile base increases, system flow rate will gradually decrease. The equipment must maintain stable output without significant pressure surges or violent pulsation.
3. Reliable pressure holding and safe pressure relief
Equipped with pressure gauges, pressure-regulating valves, overflow protection, and return lines to ensure timely pressure relief upon reaching design pressure or encountering abnormal blockages, thereby protecting the pump body, hoses, and grouting pipes.
4. Ease of flushing and residual grout handling
Deep-hole delivery pipelines are long; if cleaning is delayed after shutdown, cement grout may accumulate within the pump chamber, valve assembly, and pipelines. Well-designed flushing ports and short residual grout pathways help minimize the risk of pipeline clogging.
Although the project specifies an operating pressure range of 10–30 bar, equipment selection must also account for the grout mix ratio, estimated grout volume, internal diameter of the grouting pipe, construction time per pile, and on-site power supply conditions. Variations in the water-cement ratio, in particular, directly affect grout viscosity and pipeline resistance; consequently, the actual pumping performance of the same unit may vary significantly depending on the grout properties.
For bridge foundation projects of this type, our engineers prioritize verifying the following data:
1. Pile diameter, depth, and grouting pipe layout;
2. Estimated grout volume per pile and allowable construction duration;
3. Water-cement ratio of the cement grout and the inclusion of bentonite or admixtures;
4. Design termination pressure, maximum allowable pressure, and pressure-holding duration;
5. On-site power supply, available workspace, and equipment mobility requirements;
6. High-pressure hose length, connection specifications, and grouting pipe coupling methods.
Verifying these conditions allows for the proper matching of the pump’s rated pressure, flow rate, drive power, and accessory configuration. This prevents issues such as having sufficient pressure but inadequate flow, or the pump reaching the target pressure without achieving effective grouting at the pile base.

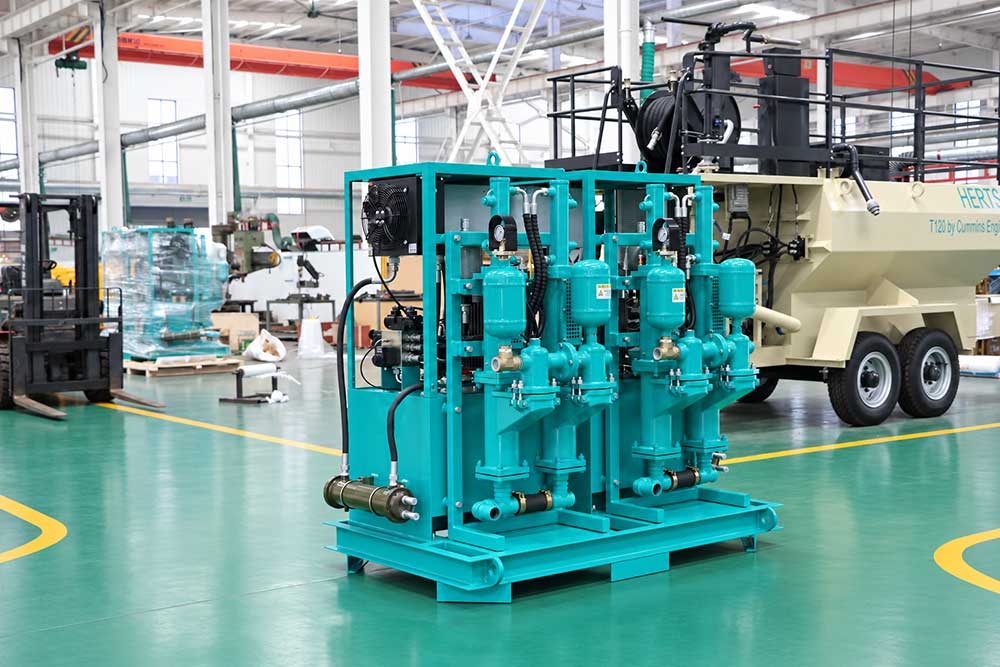

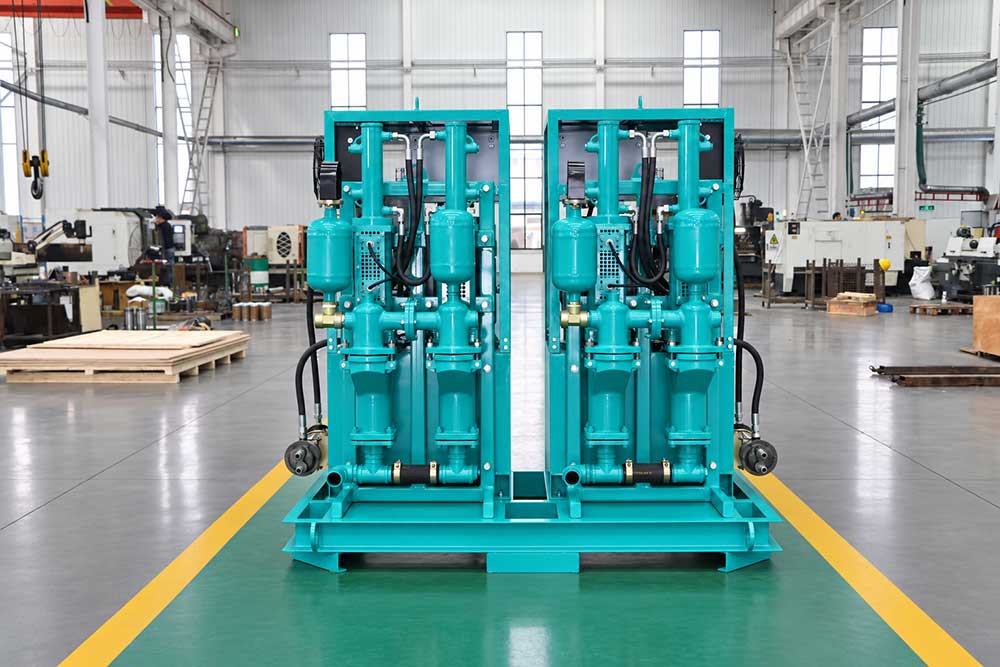

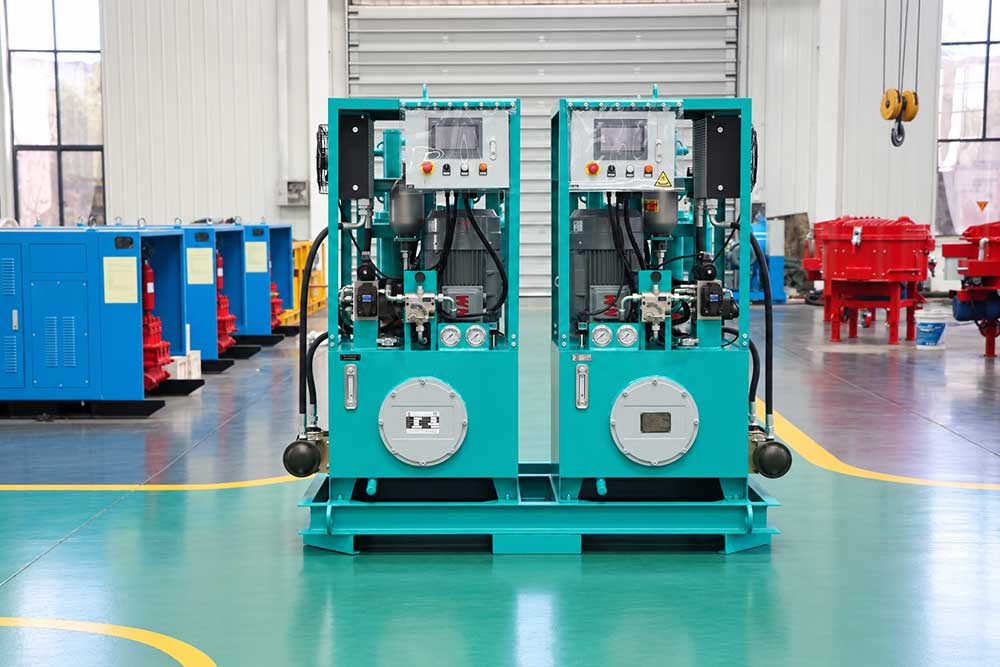

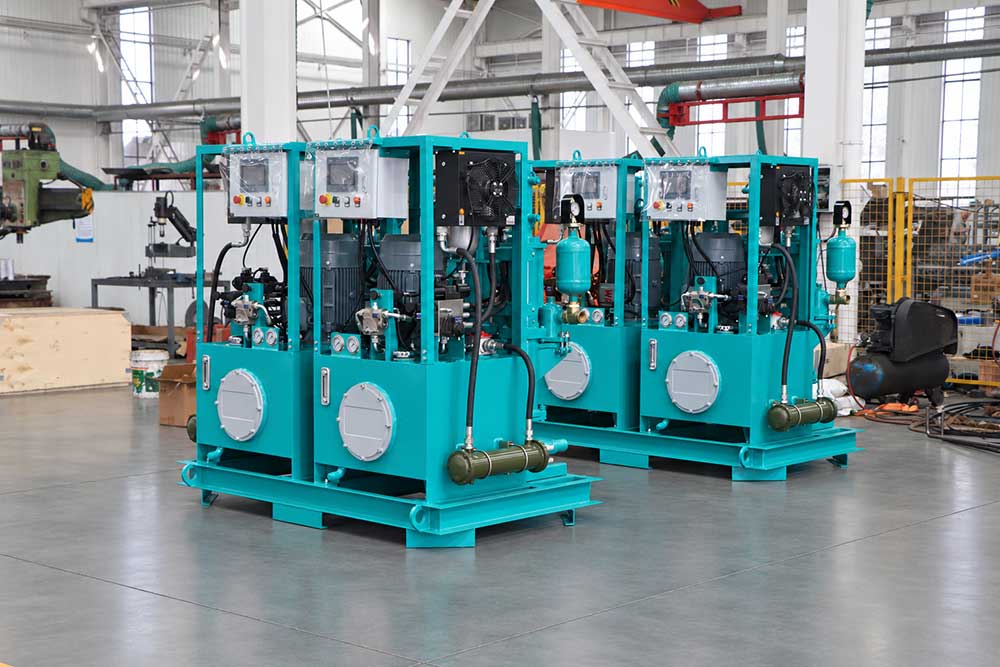

Based on specific project conditions, Henan Wode supplies
high-pressure grouting pumps accompanied by high-speed grout mixers, storage/agitation tanks, high-pressure delivery hoses, pressure monitoring devices, pressure regulation and relief valve assemblies, spare parts, and connectors. For projects requiring continuous operation or involving large grout volumes per pile, mixing, storage, and pumping units can be integrated into a single system to reduce waiting times and enhance on-site construction continuity.
As a professional manufacturer of
grouting equipment, Henan Wode Heavy Industry Co., Ltd. offers customized high-pressure grouting pumps tailored to the depth, diameter, geological conditions, and grouting techniques required for bridge pile foundations. The equipment is suitable not only for post-grouting at the pile base but also for side grouting, micropile construction, anchor grouting, soil stabilization, and cement grouting in underground engineering projects.
