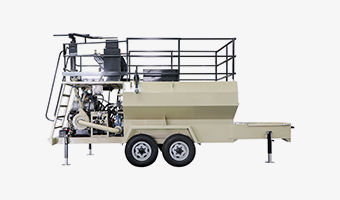

HWHS0454 is a trailer hydroseeder designed for professional construction projects, capable of mixing and spraying high-viscosity hydroseeding slurries. Equipped with a 4,693L tank, a mechanical paddle agitation system, a slurry recirculation system, and a 72HP Cummins diesel engine, it is suitable for applications such as slope stabilization, highway revegetation, mine ecological restoration, landscaping, and soil erosion control.
High-Capacity Tank Enhances Construction Efficiency
The HWHS0454 trailer-mounted hydroseeder features a tank with a total capacity of 4,693L and an effective working capacity of 3,993L. For medium-to-large-scale hydroseeding projects, this capacity reduces the frequency of refilling water, loading materials, and re-mixing, thereby boosting continuous operational efficiency.
However, a large tank alone does not guarantee higher efficiency; the ability to maintain slurry uniformity from the start to the finish of a batch is a critical factor affecting spray quality.
The HWHS0454 trailer hydroseeder utilizes a streamlined tank design that facilitates smooth internal slurry circulation. This minimizes sediment buildup and localized concentration inconsistencies, ensuring the material maintains a stable flow state throughout the spraying process.
Mechanical Paddle Agitation Handles Viscous Slurries
The HWHS0454 trailer hydroseeder is specifically engineered to handle challenging hydroseeding materials. Unlike equipment that relies solely on liquid recirculation for mixing, the mechanical paddle system ensures more direct and thorough blending of wood fiber mulch and viscous slurries.
The unit's heavy-duty paddle agitator is driven by a variable-speed hydraulic motor capable of both forward and reverse rotation. This powerful agitation system rapidly disperses materials, ensuring a highly uniform mix of wood fiber, seeds, fertilizers, tackifiers, and water.
The mechanical paddle agitation system is particularly well-suited for the following applications:
High-concentration hydroseeding slurries;
Wood fiber mulch;
Tackifiers and soil amendments;
Soil erosion control materials;
Slurries requiring solid particle suspension;
Slope stabilization and large-scale spraying projects.
The agitator and the slurry pump operate via independent drive systems. Operators can mix materials independently without starting the slurry pump, thereby reducing unnecessary pump operation and wear during the slurry preparation stage.
The combination of mechanical paddle agitation and a liquid recirculation system ensures the slurry remains uniform both before and during the spraying process.
72HP Cummins Diesel Engine Suitable for Independent Field Operations
The HWHS0454 trailer-mounted hydroseeder is powered by a 72HP (54kW) Cummins diesel engine with a rated speed of 2400 rpm.
The diesel power system drives both the centrifugal slurry pump and the hydraulic system, enabling independent operation on highways, mines, slopes, and remote construction sites where external power is unavailable.
The engine safety system includes automatic shutdown protection for low oil pressure and high temperatures, minimizing the risk of damage from abnormal operation during extended outdoor projects.
Cummins engines are supported by extensive service and parts networks across many countries and regions, facilitating maintenance and spare parts procurement for international customers.
Powerful Centrifugal Pump with 50m Spray Range
The HWHS0454 commercial hydroseeder is equipped with a 4-inch by 2-inch centrifugal slurry pump. Driven by a direct-connect clutch system, the pump can operate independently of the agitator.
With the appropriate slurry mix and operating conditions, the hydroseeder achieves a maximum spray range of 50 meters (164 feet). This reach allows operators to cover high slopes, highway embankments, and areas inaccessible to the towing vehicle.
The unit comes with a variety of nozzles:
1 narrow fan nozzle;
1 wide fan nozzle;
2 long-range nozzles.
Operators can select the optimal spraying configuration based on the project area, target distance, slope height, and required coverage width.
Stable Trailer Design Suited for Construction Environments
As a trailer-mounted hydroseeder, the unit must not only meet mobility requirements but also maintain stability when the tank is fully loaded with water and materials.
The HWHS0454 has an empty weight of approximately 4,340 kg and a fully loaded operating weight of approximately 9,650 kg. The unit features independent torsion-bar suspension axles, heavy-duty wheels, and highway-grade tires, enhancing stability during transport and on-site positioning.
A large loading hopper is located at the front, allowing operators to easily load wood fiber mulch, seeds, fertilizers, and other hydroseeding materials.
The unit is also equipped with an operator platform, safety railings, and ergonomically arranged controls, facilitating convenient operation during loading, mixing, and spraying tasks.
The HWHS0454 trailer hydroseeder is suitable for a wide range of landscaping and ecological restoration projects, including:
Highway slope greening;
Railway slope revegetation;
Roadbed soil erosion control;
Mine site ecological restoration;
Landfill revegetation;
Large-scale landscaping;
Municipal greening projects;
Commercial and residential lawn establishment;
Sports field and public park landscaping;
Soil stabilization projects;
Vegetation restoration in construction areas;
Dust suppression and watering operations.
For high slopes or areas distant from access roads, the spray cannon and hose reel offer versatile spraying options, reducing the need for frequent equipment repositioning on the job site.
Henan Wode Heavy Industry Co., Ltd. is a professional Chinese manufacturer of hydroseeding equipment, offering customers comprehensive services including equipment selection, custom design, manufacturing, factory testing, export packaging, and after-sales technical support.
The HWHS0454 trailer hydroseeder can be configured to meet specific project conditions, local regulations, and operational preferences. Customization options include trailer components, control systems, hose layouts, nozzle combinations, and other operational configurations.
Prior to delivery, we conduct thorough inspections and operational tests on the diesel engine, paddle agitation system, centrifugal slurry pump, hydraulic system, and electrical control system. If you are looking for a reliable trailer-mounted hydroseeder, please provide us with the following project details:
1. Country of use and destination port;
2. Total project application area;
3. Planned daily application area;
4. Maximum slope height;
5. Required spraying distance;
6. Types of seeds and mulch to be used;
7. Slurry concentration or material mixing ratio;
8. Towing vehicle available on-site;
9. Local regulations regarding trailer transport and road use.
Based on this information, WODE can recommend the appropriate hydroseeder configuration and provide a professional technical proposal, pricing, and shipping recommendations.
Please contact WODE for a quote, lead time, and a customized technical proposal for the HWHS0454 hydroseeder.
