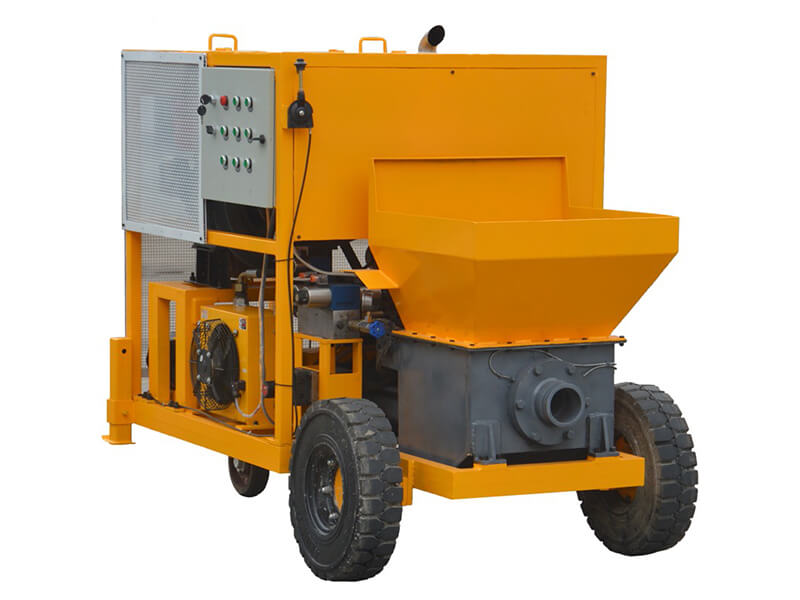

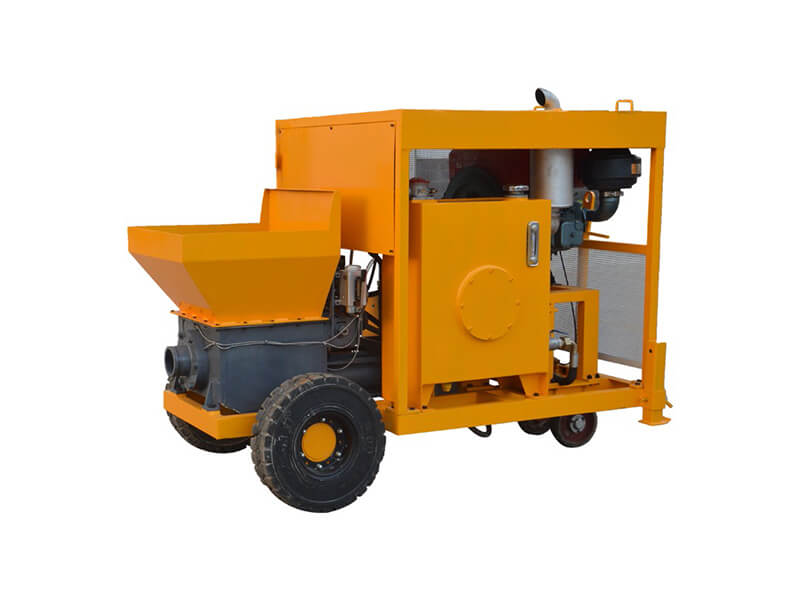

WMP7-35D Mini Concrete Pump with diesel engine

Description:

WMP7/35D pump is one multi-purpose industrial pump developed by absorbing advanced technology from abroad, driven by diesel engine, max. output could be arrive to 7m3/h, working pressure is 35 Bar, so widely used for concrete pumping or grouting and shotcreting work.

Zhengzhou Wode Heavy Industry Co., Ltd.

Browse video

Catalogue download

Mobile Phone: +86-19913803800

E-mail: sales@wodetec.com

GET PRICE Send E-mail

Features Technical Paremeter Application Inquiry

Features

Zhengzhou Wode Heavy Industry Co., Ltd.?

Solid tyres, feel free to move;

Independent electric control cabinet,

Convenient for operation and longevity of service;

	Changchai L32 diesel engine Electric-start, with peed- regulating handle, quality guarantee, easy to operate.
Output 3-7m3/h, stepless adjustable, more widely application for grouting and spraying work.
	Specially design spraying nozzle, spraying flow is even, continuous and steady.
If for shotcreting, need work with dosing pump and air compressor.
	Cemented Carbide Wear Plate/Ring (working life more than 10000 m2).
Polyether material Piston, More wear- resisting.

Technical Paremeter

Specification (with)

Rated Output	3-7m³ /h
Pump work pressure	35 Bar
Acceptable Max. Aggregate Size	20mm
Cylinder diameter	120mm
Cylinder Stroke	360mm
Pump Valve	S Valve
Max. Horizontal Conveying Distance	90m
Max. Vertical Conveying Distance	30m
Concrete Slump	15-25cm
Conveying Hose Inner Diameter	80/100mm
Diesel	23kw/2200rpm single cylinder, water cooling
Dimension(L × W × H)	220012501600mm
Net Weight	1190kg

Application

ØConcrete wall construction ØTunneling construction

Ø masonry block filling Ø Mining support (sprayed concrete walls and ceilings)

Øconcrete wall grouting ØSwimming pool (sprayed concrete shells)

Øconcrete sidewalk Øpatio slab pumping

Ølow-volume shotcrete ØExcavation-protection
