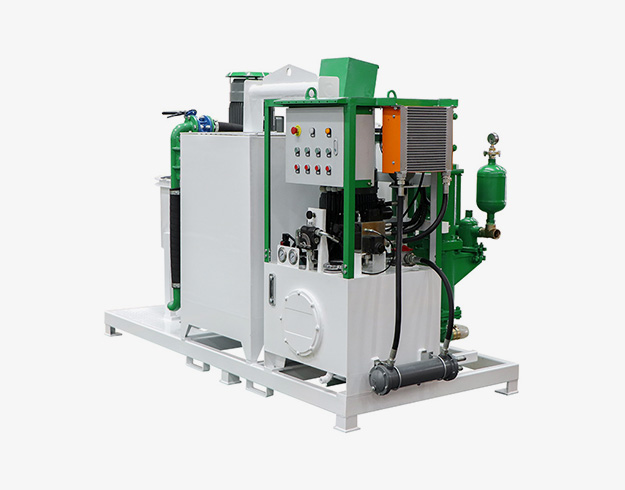

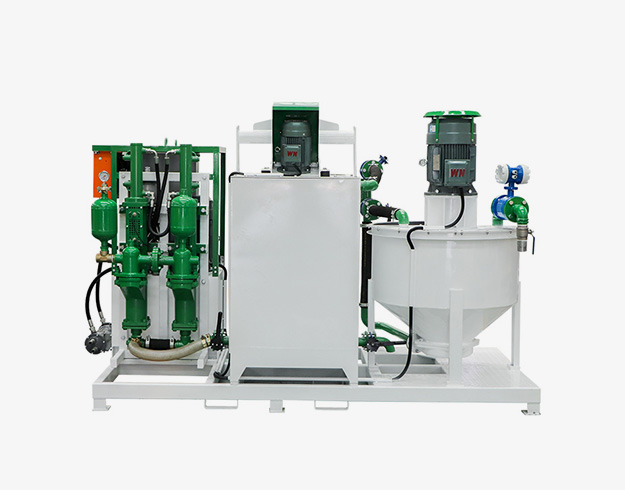

HWGP400/1000/90DPL-E Bentonite Injection Mixing Plant

HWGP400/1000/90DPL-E bentonite mixing plant integrates a mixer, agitator, and grouting booster pump into a compact unit, making it easy to transport and deploy on-site. Equipped with high-speed vortex mixing technology, it ensures rapid blending of water and materials to form a stable, uniform slurry. With its reliable construction, simple operation, and minimal wear parts, it significantly reduces long-term maintenance costs and is widely applicable to various civil engineering and mining projects.

Mixer Capacity:400L

Agitator Capacity:1000L

Grout Pump Power:11KW

Grout Pump Flow:90L/min

Grout Pump Pressure:10Bar

Send Email

chat now

Share With:

Brief Introduction

Features

Parameters

Detail Part

Shipping

Inquiry

Brief Introduction

Introduction of HWGP400/1000/90DPL-E Bentonite Injection Mixing Plant

HWGP400/1000/90DPL-E bentonite mixing plant features a robust, compact, fully integrated design that facilitates easy movement and transportation in complex construction environments. It is widely used in various above-ground and underground engineering projects, including highway, railway, hydropower, construction, and mining operations, meeting the construction needs of all types of infrastructure and geotechnical engineering projects.

Features

Features of HWGP400/1000/90DPL-E Bentonite Injection Mixing Plant

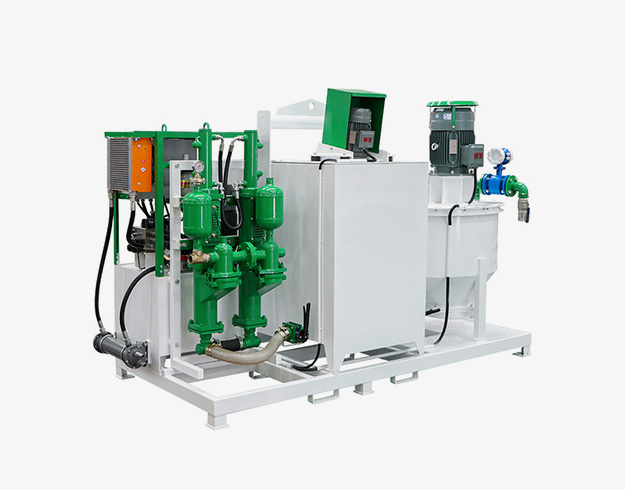

Bentonite Injection Mixing Plant

Compact and reliable structure

Easy to operate and convenient to maintain

Fewer spare parts are required, effectively reducing maintenance costs

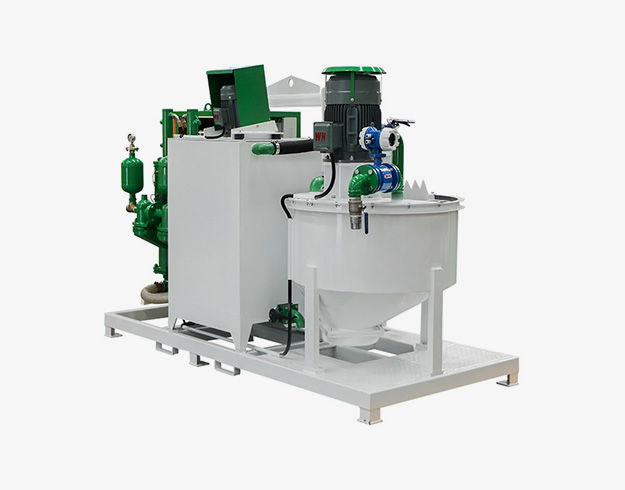

Bentonite Mixing Machine

The high-speed vortex mixer delivers fast and uniform mixing

Wide range of application

Specially designed for bentonite mixing

Parameters

Parameters of HWGP400/1000/90DPL-E Bentonite Injection Mixing Plant

Name		Data
Model		HWGP400/1000/90DPL-E
Mixer	Capacity	400L
	Power	11Kw
	Rate Rev.	1450rpm
	Production capacity	6m3/h
Agitator	Capacity	1000L
	Power	2.2Kw
	Rate Rev.	39 rpm
Grout pump	Power	11KW
	Flow	90L/min
	Pressure	10Bar
	Plunger diameter	85mm
	Max. Particle Dia.	2mm
	Outlet connection	G2’’
Power requirements		Voltage 3 Phase 380V, 50Hz

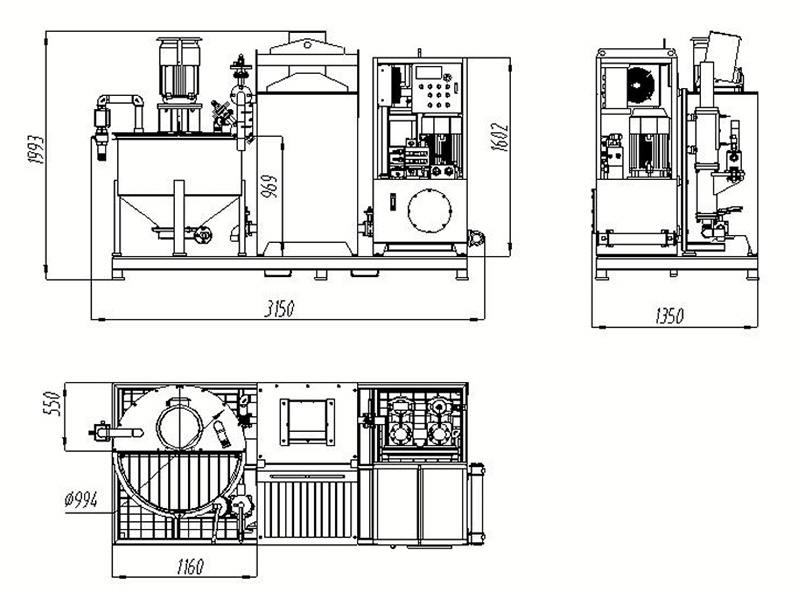

Dimension		3150×1350×2000mm
Weight		1755Kg
We can also customize products according to your needs.

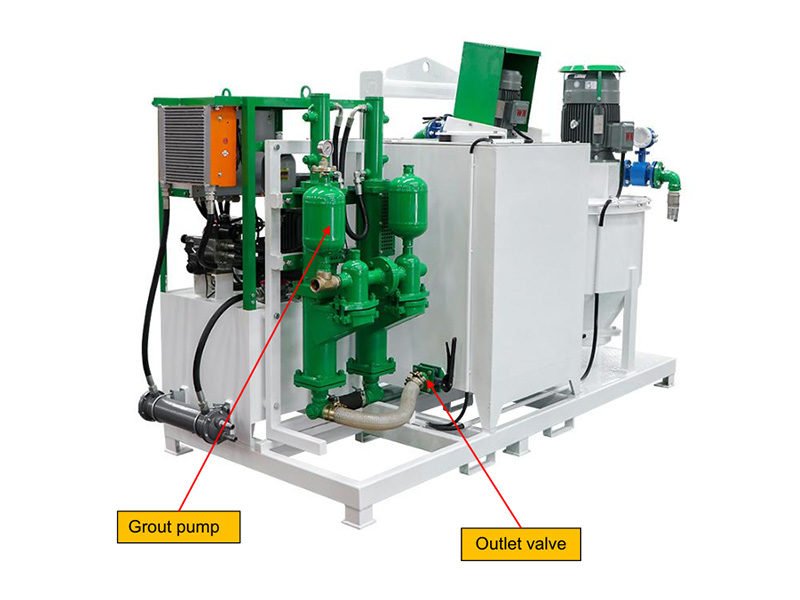

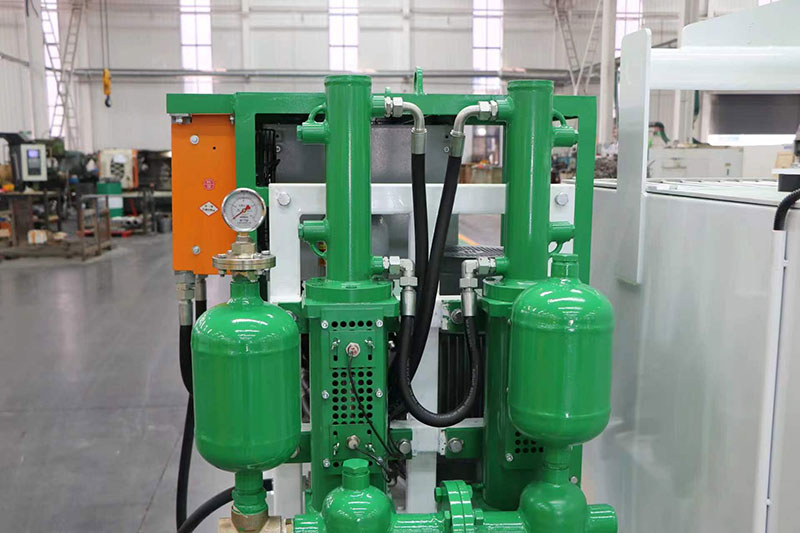

Detail Part

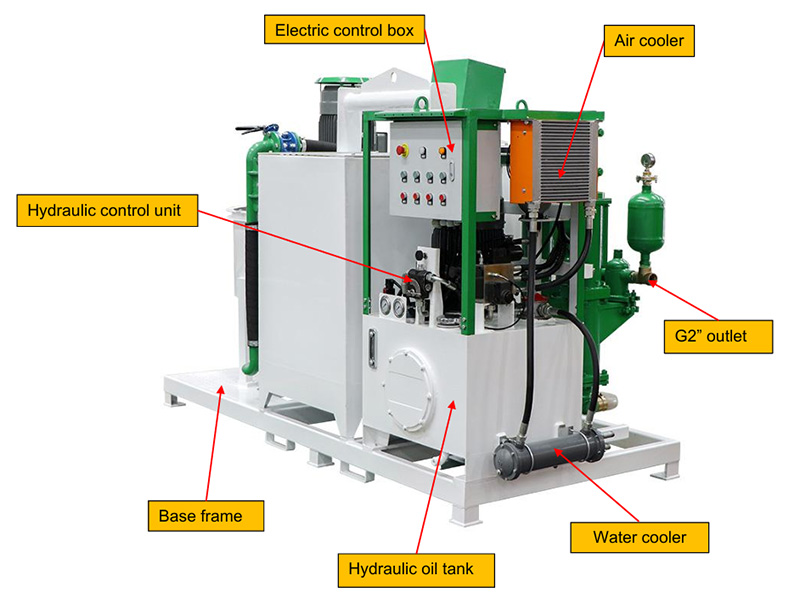

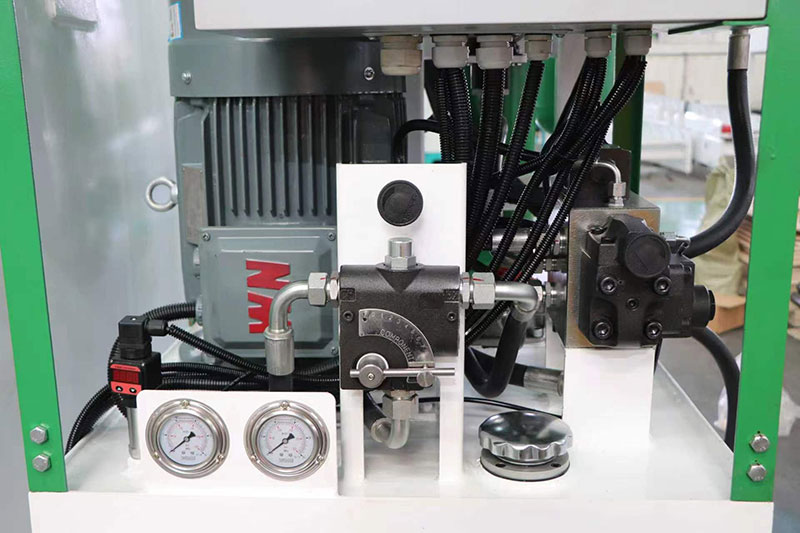

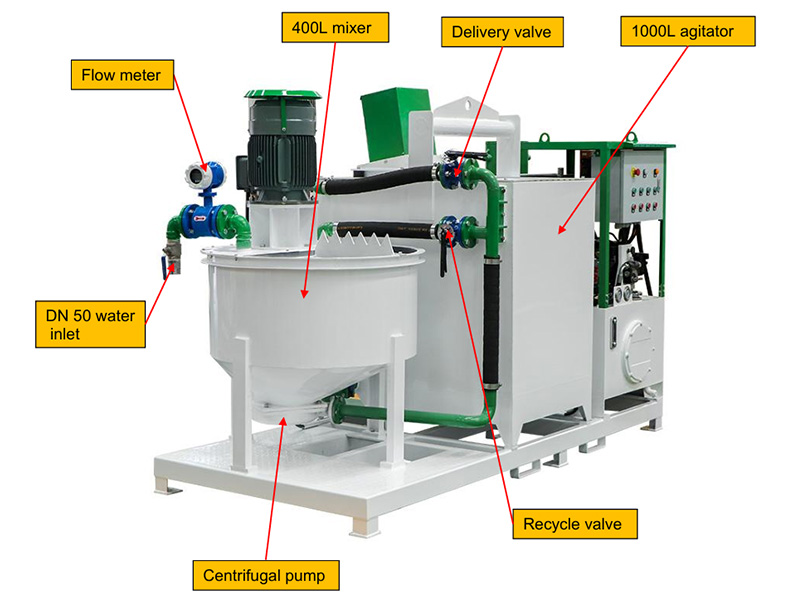

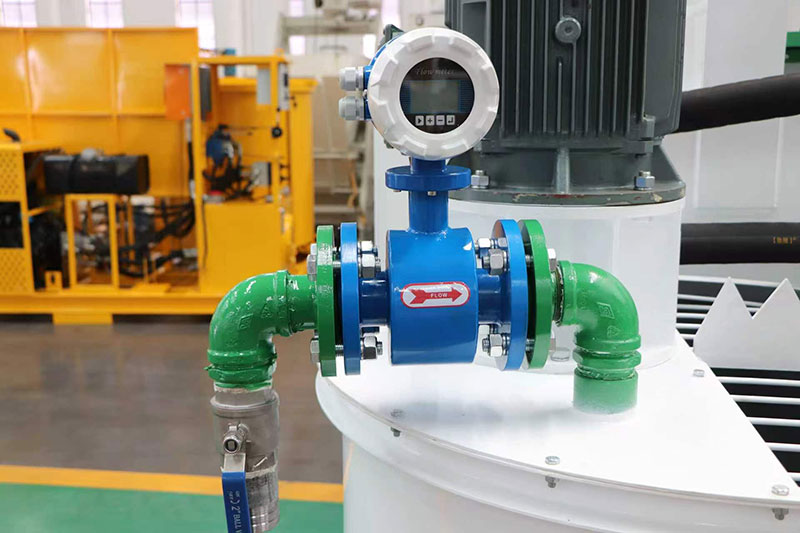

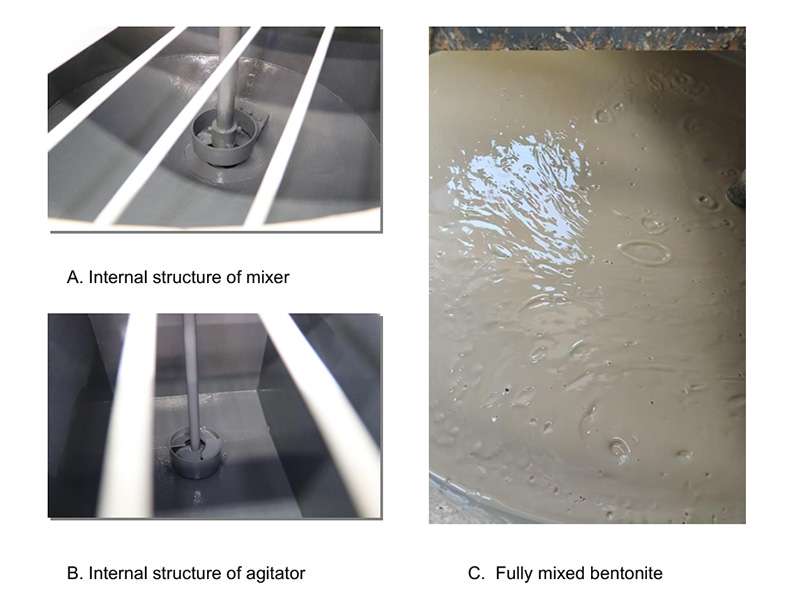

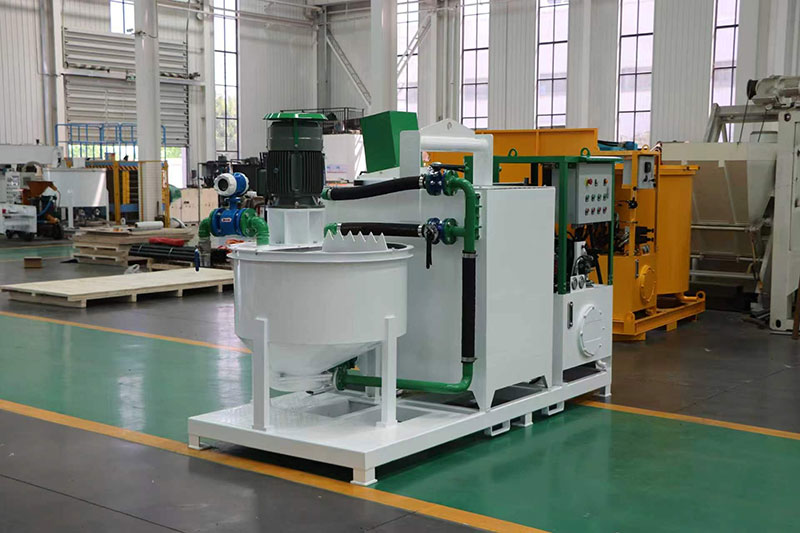

Detail Part of HWGP400/1000/90DPL-E Bentonite Injection Mixing Plant

Packaging

Packaging Display
