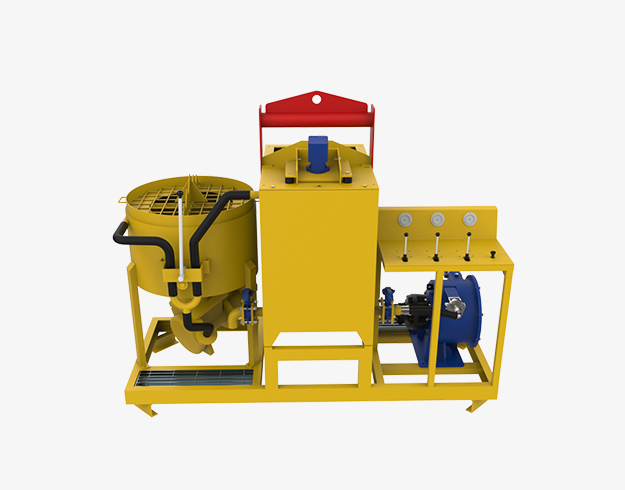

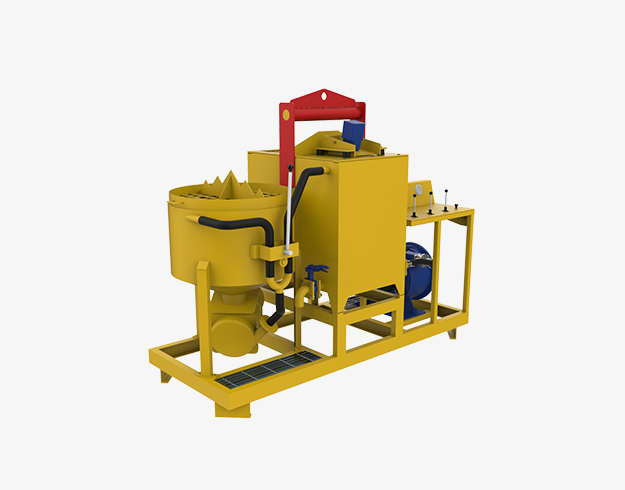

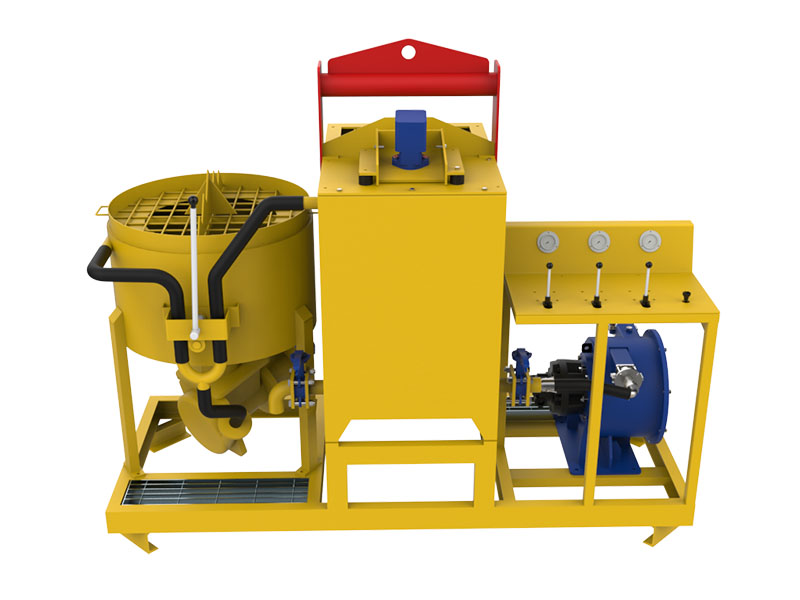

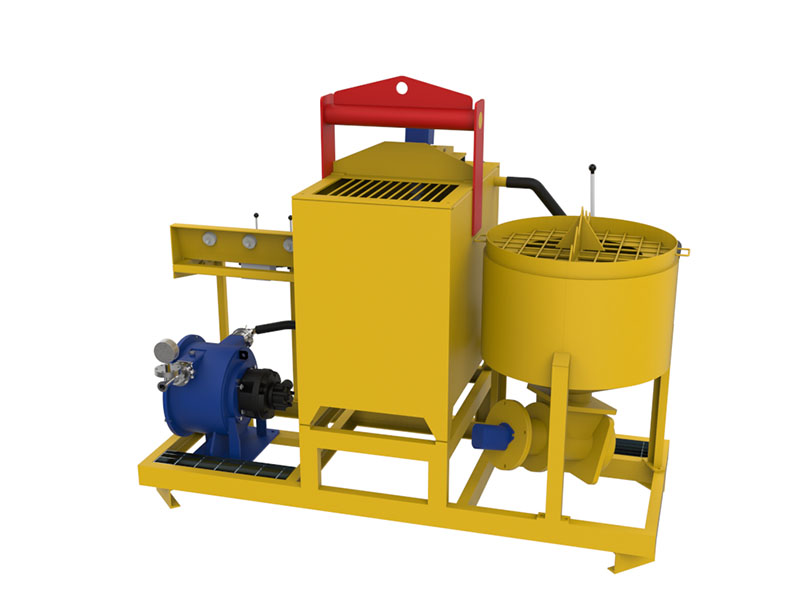

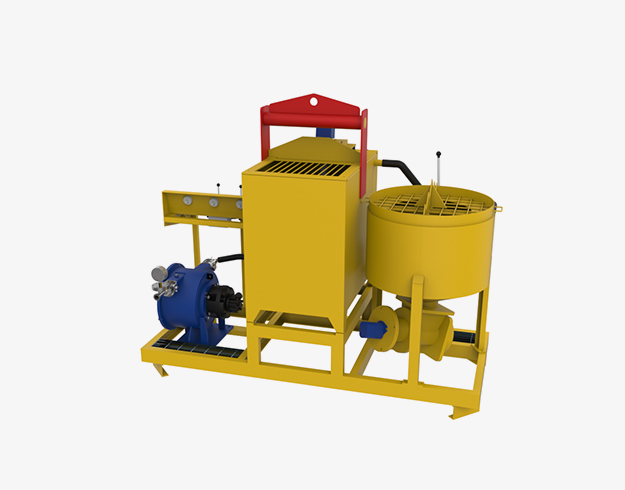

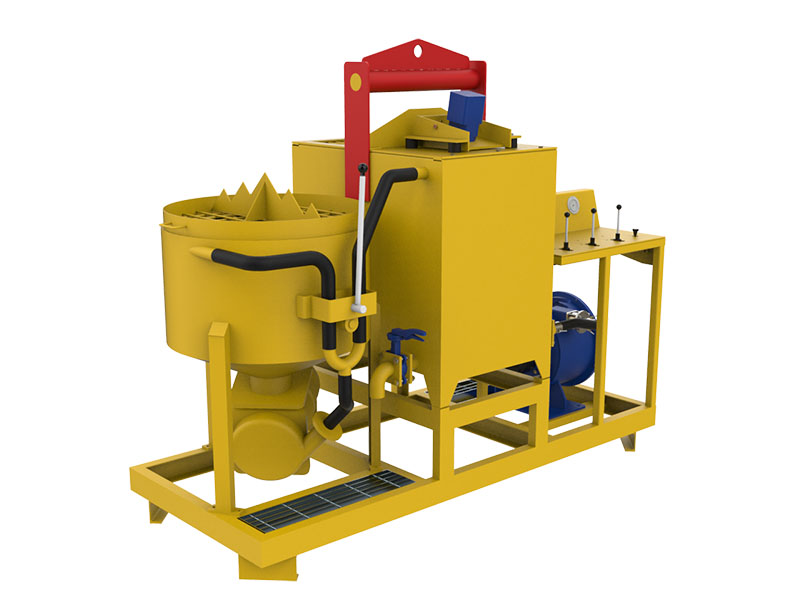

Hydraulic Grout Plant With Peristaltic Pump

Brief Introduction

Introduction of WGP220/450/38H-H Hydraulic Grout Plant With Peristaltic Pump

Purpose‑built for civil and tunnel engineering, the WGP220/450/38H-H Hydraulic Grout Plant with Peristaltic Pump performs void filling and low‑strength backfill. Circulating mixing produces homogeneous cement slurry; the agitator prevents slurry setting during continuous operation.

Suited for remote sites with limited power access. WGP220/450/38H‑H runs on an external hydraulic power source, ideal for on‑shore and offshore grouting tasks without site‑supply voltage issues.

Features

Features of WGP220/450/38H-H Hydraulic Grout Plant With Peristaltic Pump

Hydraulic Grout Plant With Peristaltic Pump

No external power supply required, eliminating concerns regarding voltage mismatch and power supply inconvenience

Simple structure

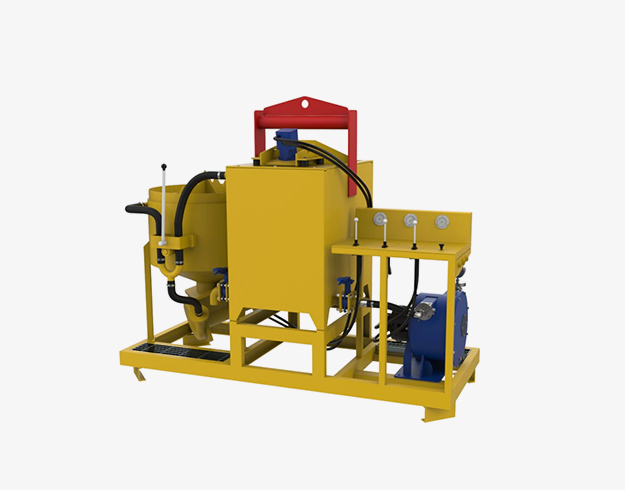

Modular Grout Station

Easy to use and maintain

Rapid mixing of water, cement, and additives

Parameters

Parameters of WGP220/450/38H-H Hydraulic Grout Plant With Peristaltic Pump

Name	Data
Machine Type	WGP/220/450/38H-H
Mixer	Volume	220L
Mixer	Speed	1500rpm
Agitator	Volume	450L
Agitator	Speed	46rpm
Hose pump	Model	WH32-330SR
	Pump pressure	14bar
	Output	19~38L/min
Dimensions	Height	1920mm
	Length	2350mm
	Width	1030mm
Weight	950kg
Require Hydraulic	45L/[email protected]
We could also customize according to your demands.

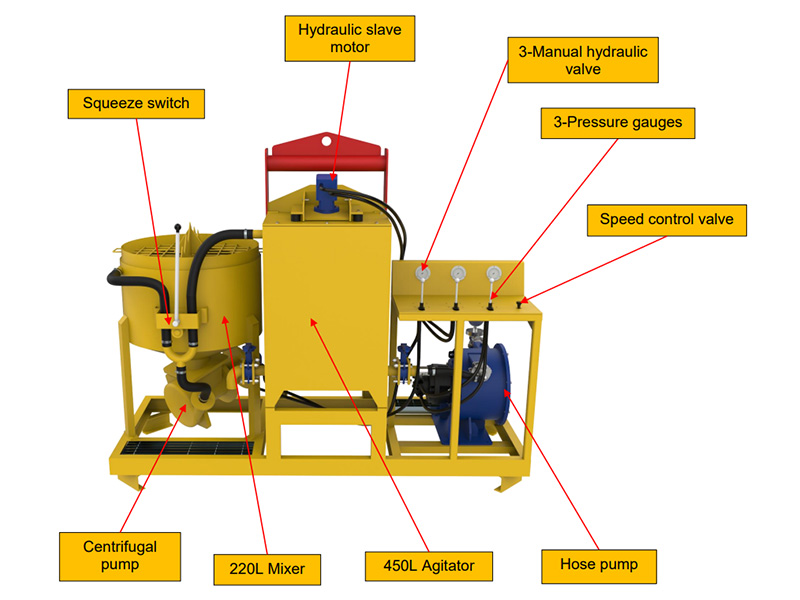

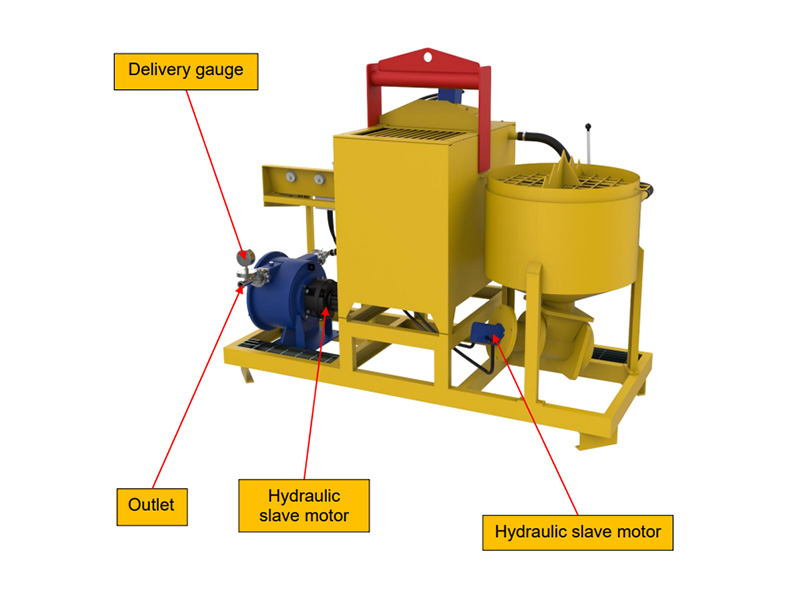

Detail Part
