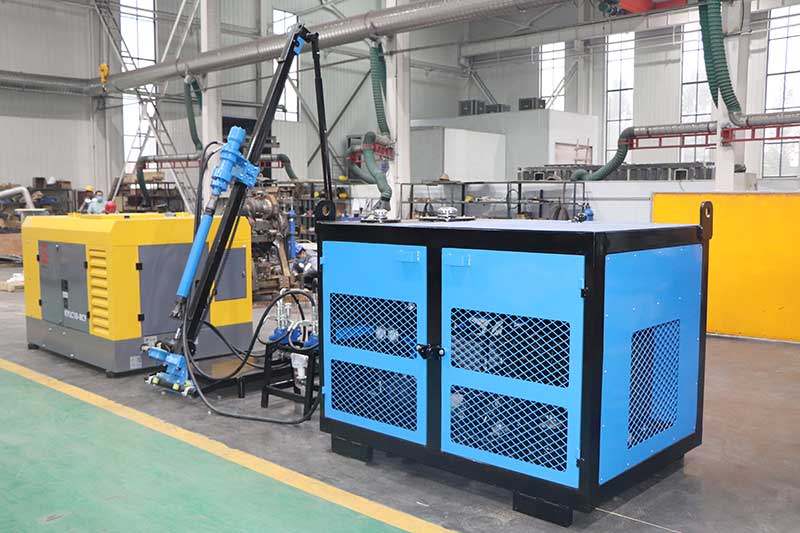

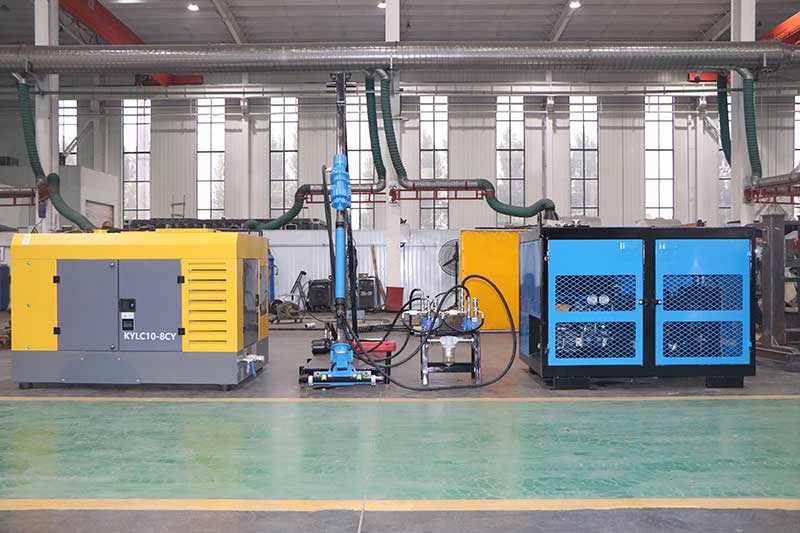

Lightweight Portable Diesel DTH Drilling Machine

Brief Introduction

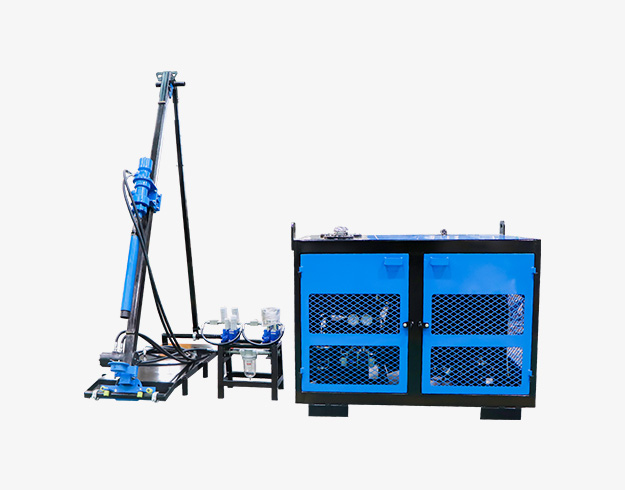

Introduction of HWPD100H-D Lightweight Portable Diesel DTH Drilling Machine

HWPD100H-D Lightweight Portable Diesel DTH Drilling Machine is suitable for a wide range of drilling processes, including down-the-hole hammer percussion drilling, core drilling, and diamond drilling, and can meet engineering requirements for anchoring, micro-piling, blasting holes, and exploration drilling. Its versatile design and ability to adapt easily to different working conditions enable a single unit to handle a diverse range of drilling tasks, providing an efficient and flexible solution for on-site construction.

Features

Features of HWPD100H-D Lightweight Portable Diesel DTH Drilling Machine

Lightweight Portable Diesel DTH Drilling Machine

Lightweight and versatile — Compact design for easy installation on scaffolding.

All-in-one machine — Covers impact drilling, core drilling and diamond drilling.

Anchoring, micro-piling, blasting holes and exploration drilling — Suitable for a wide range of applications.

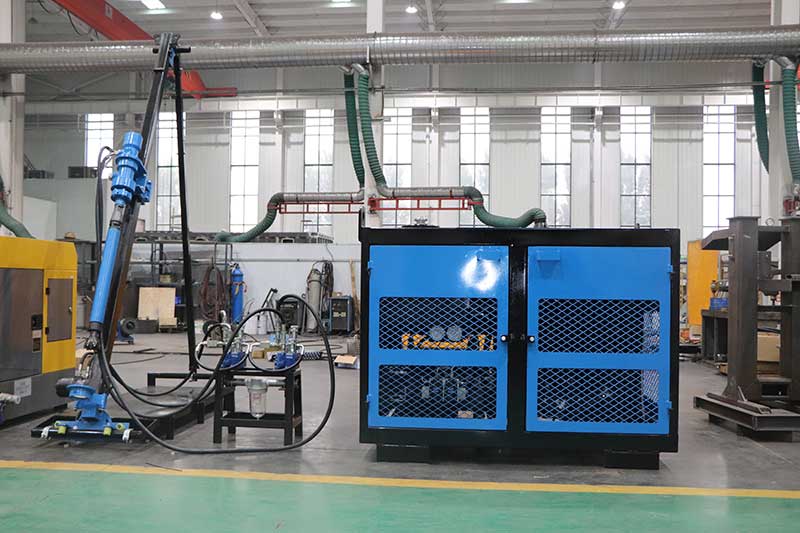

Hydraulic Feed Drilling Rig

Self-contained power supply — Diesel-powered hydraulic power unit; no external power supply required in the field.

Reliable system — Cooling, filtration, and pressure regulation ensure stable operation.

User-friendly operation — Real-time pressure and temperature display, simple valve control.

Parameters

Parameters of HWPD100H-D Lightweight Portable Diesel DTH Drilling Machine

Model	HWPD100H
Hole Diameter	80~120mm
Hole Depth	20m
Feed Force	12KN
Rotate Speed	90~120rpm
Torque	1000NM
Air Pressure	0.5~0.7Mpa
Air consumption	3.5~5m3/min
Drill Rod	60x2000mm
Drilling Direction	Any Angle
Weight	170Kg (Only drill machine)
Dimension	3230x560x415mm

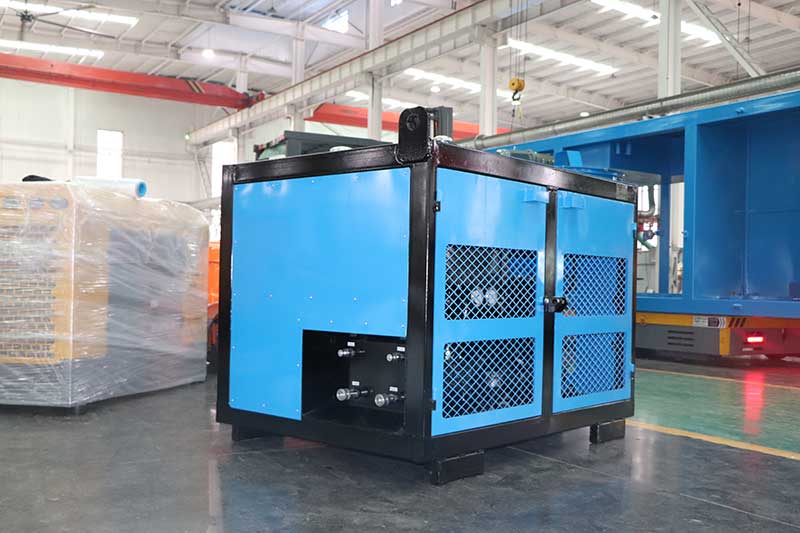

Specifications for Diesel Drive Hydraulic Station
All hydraulic pumping stations are driven by a diesel engine. Equipped with a cooling system, filtration system, pressure regulating system, pressure and temperature indication, and valve control. The product is compact, easy to operate, and does not take up space.

Type	BHPP15/55X2-30D
Output capacity	2x55L/min
Outlet pressure	15MPa
Diesel power	Yanmar diesel engine 2110 26KW (Optional)
Dimensions	1760X1150X1300mm
Weight	960kg

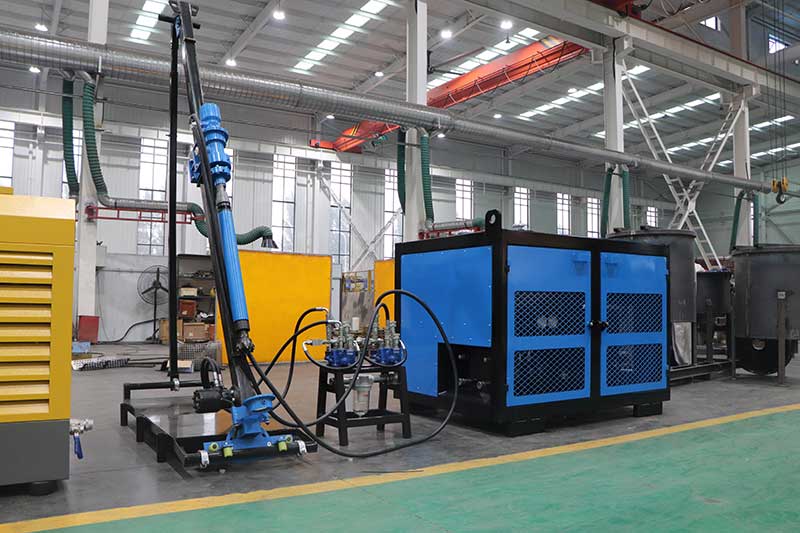

Detail Part

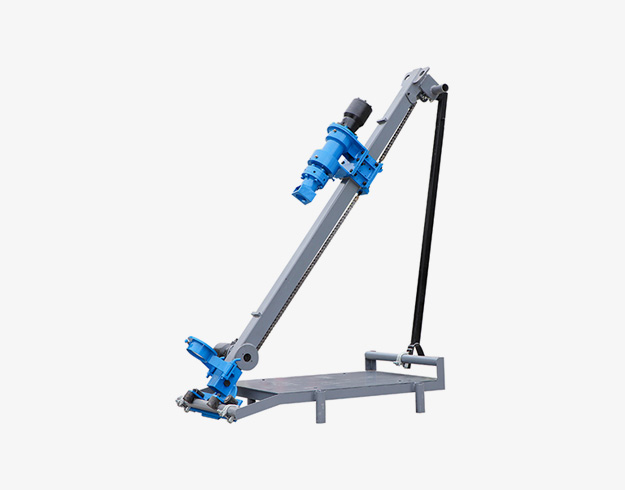

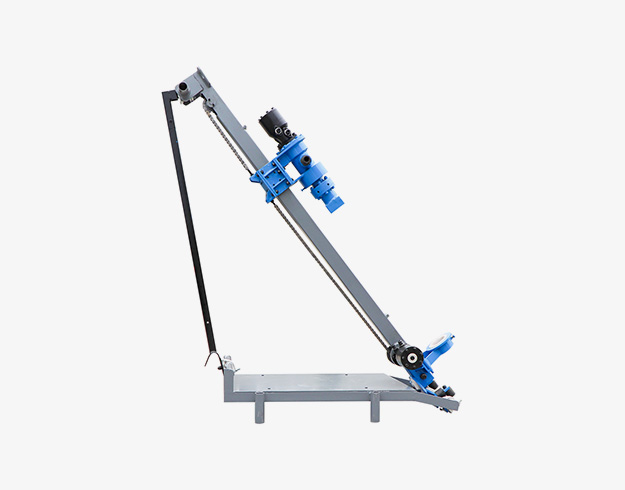

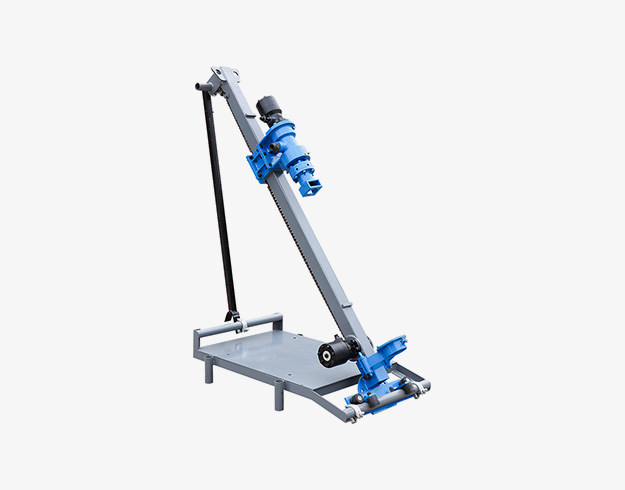

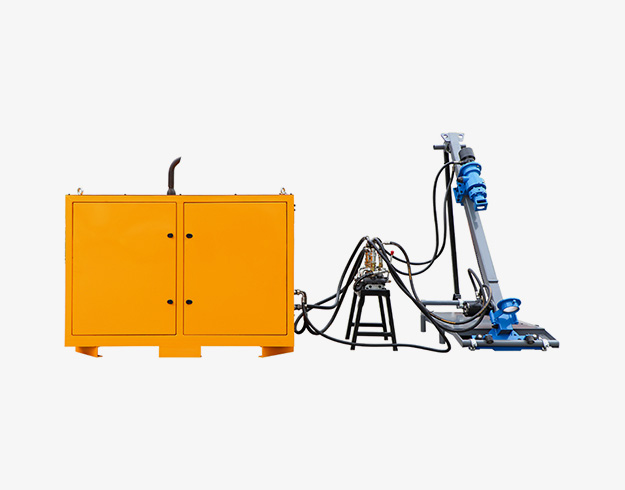

Detail Part of HWPD100H-D Lightweight Portable Diesel DTH Drilling Machine

Packaging

Packaging Display

Products

Recommend Relevant Products

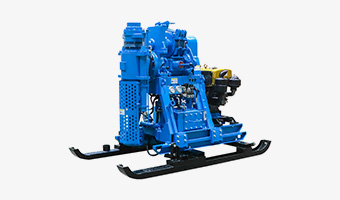

WODE E90R Portable Diamond Core Drilling Rig
