Portable Diamond Core Drilling Rig

Brief Introduction

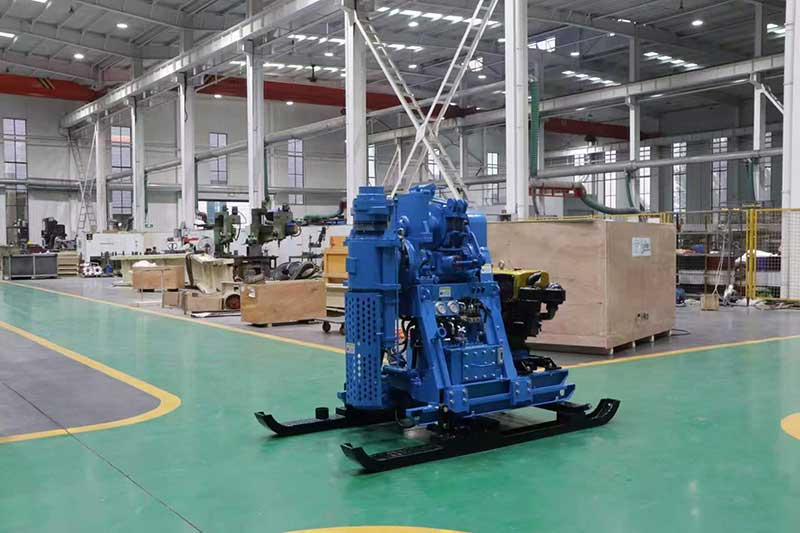

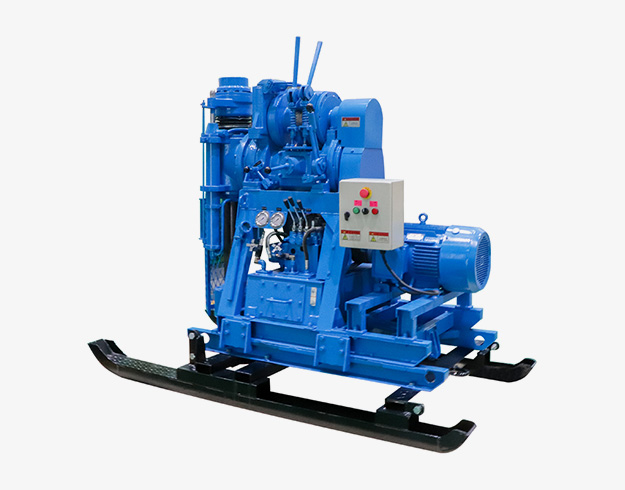

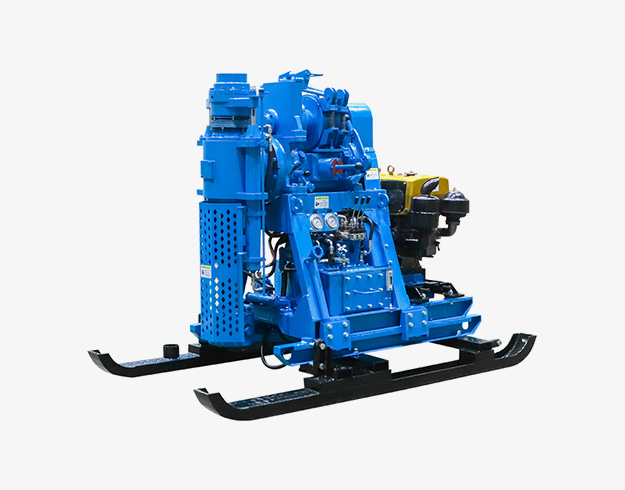

Introduction of WODE E90R Portable Diamond Core Drilling Rig

The WODE E90R portable diamond core drilling rig features a compact, rail-mounted design that allows for rapid deployment in remote areas whilst maintaining excellent drilling stability.

Its twin hydraulic cylinders provide continuous feed adjustment and strong lifting force, while the swivel drill head enables both vertical and inclined drilling operations. The hydraulic slide base allows quick positioning between boreholes, improving drilling efficiency on site.

Features

Features of WODE E90R Portable Diamond Core Drilling Rig

Portable Diamond Core Drilling Rig

Robust Chassis: Features a steel towing skid as the load-bearing base, fitted with three towing rollers to facilitate movement between drilling sites.

Movable Slider: Equipped with a hydraulically driven sliding base, allowing for 370 mm of fore-and-aft displacement during drilling to facilitate alignment with the borehole.

Power Unit: Standard specification includes a 15-horsepower diesel engine (other power units are available as options).

Transmission: A four-speed gearbox drives the winch and drill bit, adapting to different operating conditions.

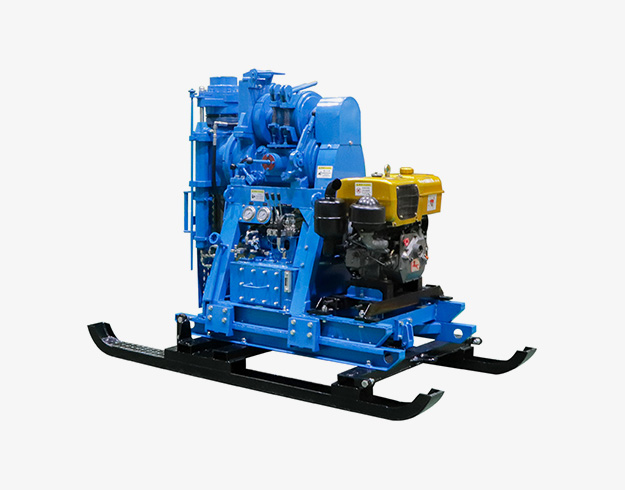

Geological Core Drill Machine

Winch Control: Features a planetary gear-type winch drum; the brake and clutch are fitted with wrap-around brake bands and are operated manually via an off-centre cam handle.

Hydraulic Feed: The drill bit is fitted with twin hydraulic cylinders, allowing for infinitely variable feed speed adjustment.

Powerful Thrust: At a hydraulic pressure of 103 bar (105 kg/cm²), it can generate an upward thrust of 5,580 kgf.

Angled Drilling: The drill bit can rotate and swing, supporting angled drilling operations.

Constant-pressure oil supply: A variable-displacement vane pump, driven directly by the engine, provides hydraulic power, ensuring pressure is available at all times whilst the engine is running.

Operating parameters: The maximum operating pressure is 103 bar (105 kg/cm²), and the hydraulic oil tank capacity is 30 litres.

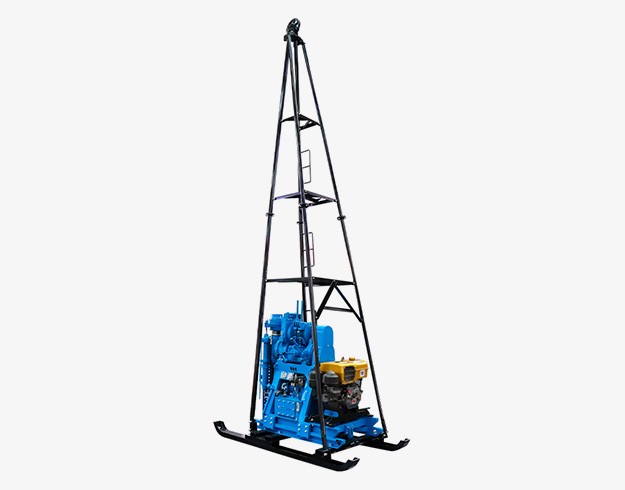

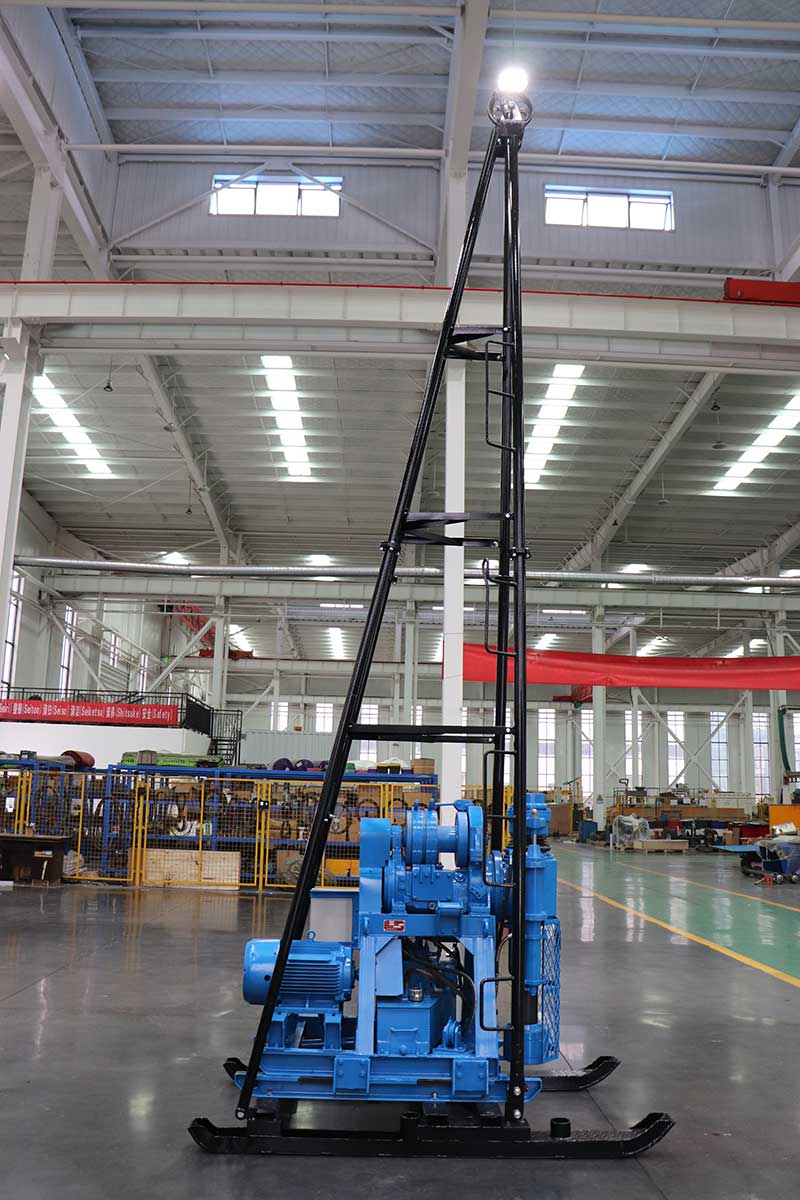

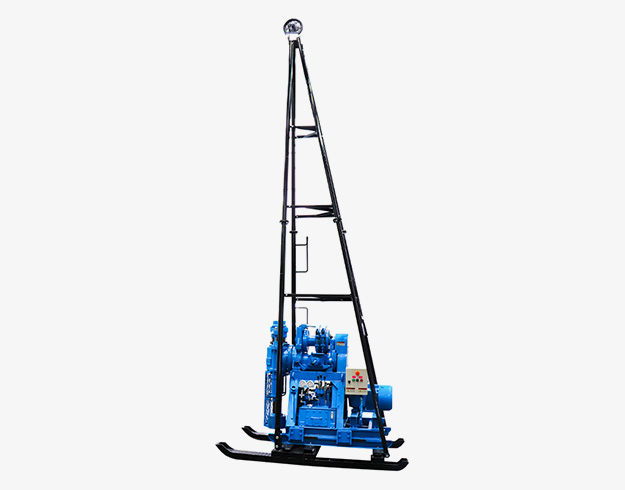

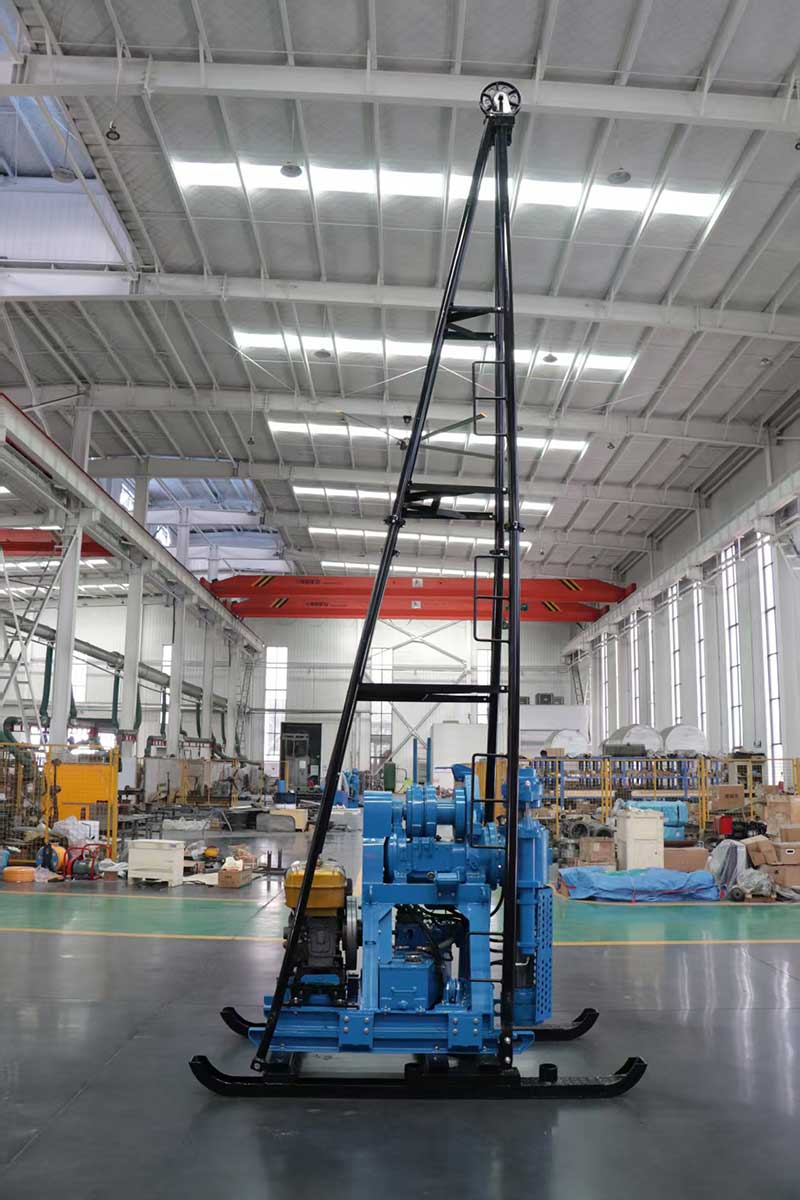

Four-section column-type mast: The standard configuration is a four-section column type, with outriggers anchored to the towing skid.

Reinforced bracing: Bracing struts are fitted at three height levels to ensure operational stability.

Lifting height: Approximately 5.6 metres.

Parameters

Parameters of WODE E90R Portable Diamond Core Drilling Rig

Drill Head	Drilling Capacity	100m (NW Casing)
	Type	Spindle type, hydraulic feed
	Drilling Angle	360°
	Operation Side	(R) Right-Standard, (L) Left-Optional
	Spindle Bore	92mm(NW Casing)
	Feed Stroke	500mm
	Spindle Speed	91/340/524rpm, 77rpm (reverse)
	Spindle Torque	79/21/14kgf-m, 93kgf-m (reverse)
	Thrust	5,580kgf (at hydraulic pressure 105kg/cm²)
	Chuck	Manual, 3-jaw type
	Main Clutch	Single plate, dry disc type
	Transmission	Sliding gear, 3 forward & 1 reverse
Hydraulics	Pump	Vane type, variable volume
	Delivery Capacity	25 litre/min. at 1,500 rpm
	Maximum Pressure	105kg/cm²
Hoist	Type	Planetary gear, operated by over-centre cam hand lever
	Hoisting Capacity	1,500kg
	Rope Speed	17/65/101m/min. (average)
	Drum Capacity	Dia.10mm wire rope x 35m long (or Dia.12mm x 25m)
Retraction	Hydraulic	Slide 370mm
Power Unit	Condensing Diesel Engine	15HP at 2,400 rpm
Power Unit	Motor	AC380V, 15kW
Mast	Type	4-pole, mounted on skid, with bracing at 3 levels
	Construction	Steel pipes Dia.60mm (front) and Dia.48mm (rear)
	Sheave Size	Dia. 280mm
	Weight (mast)	170kg
	Dimension (mast)	1,250mm W x 1,260mm L x 5,750mm H (Height taken from the ground to top of crown sheave)
Weight	With Skid & Engine H16	1300kg
Machine Dimension	W x L x H	1,140mm x 2,186mm x 1,585mm

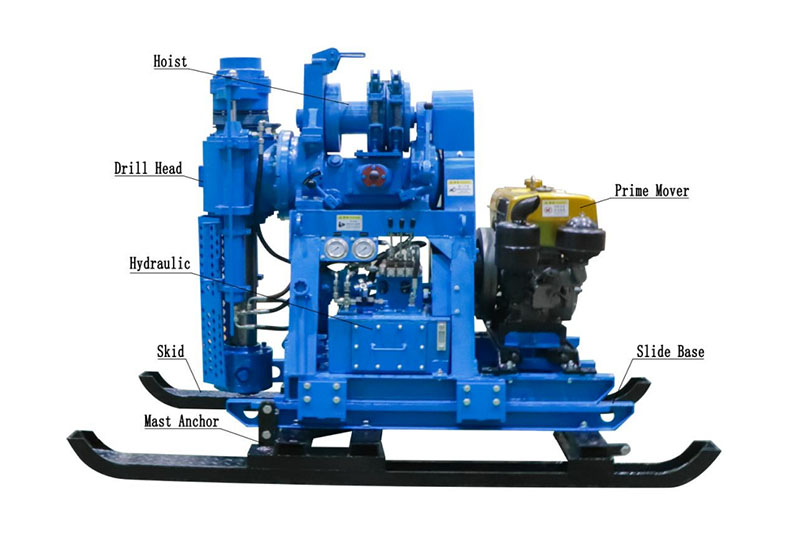

Detail Part

Detail Part of WODE E90R Portable Diamond Core Drilling Rig

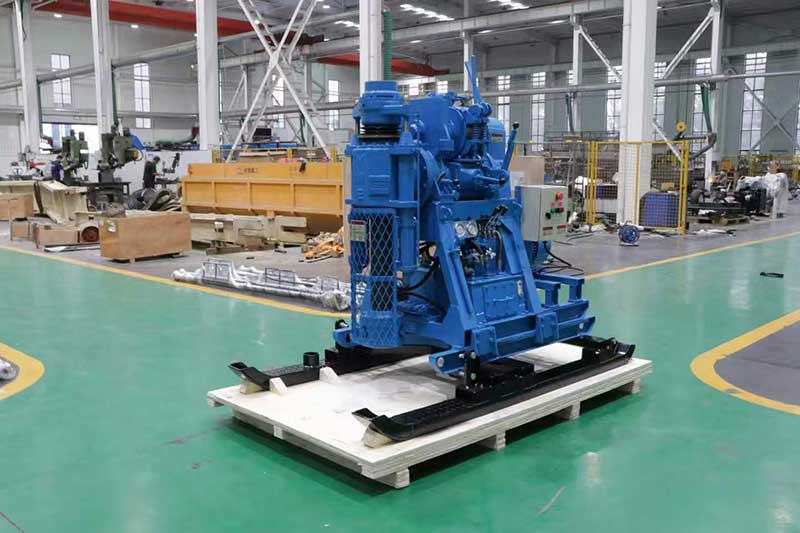

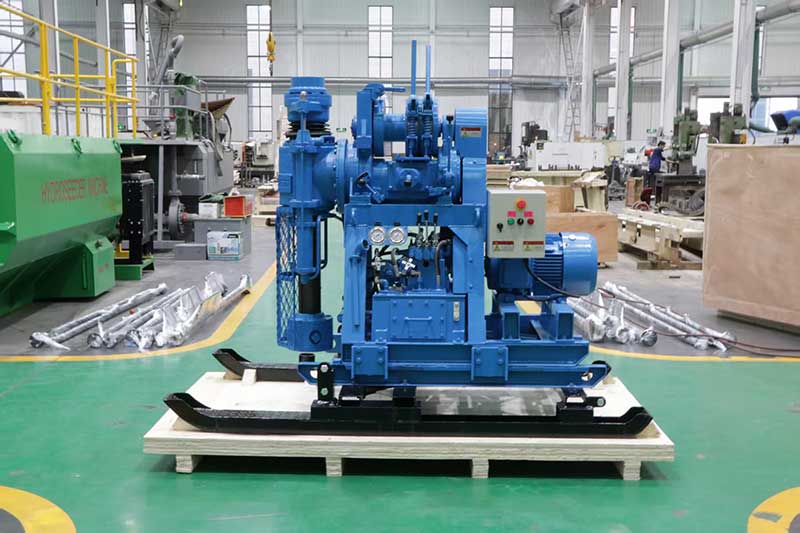

Packaging

Packaging Display

Products

Recommend Relevant Products

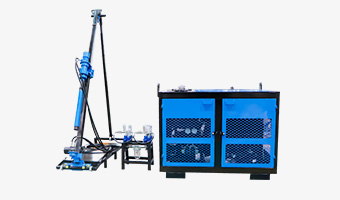

HWPD100H-D Lightweight Portable Diesel DTH Drilling Machine
