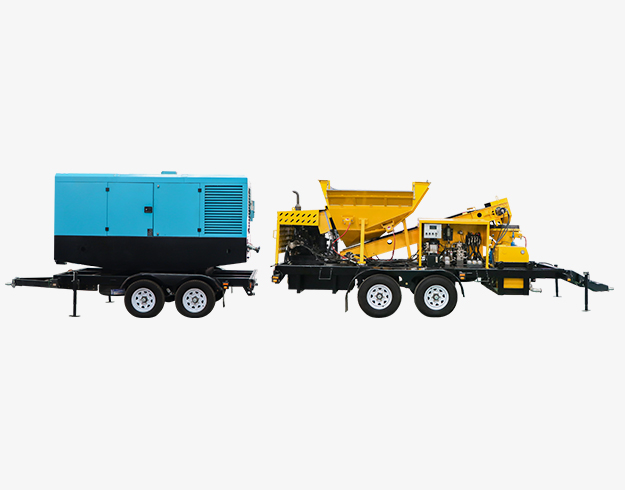

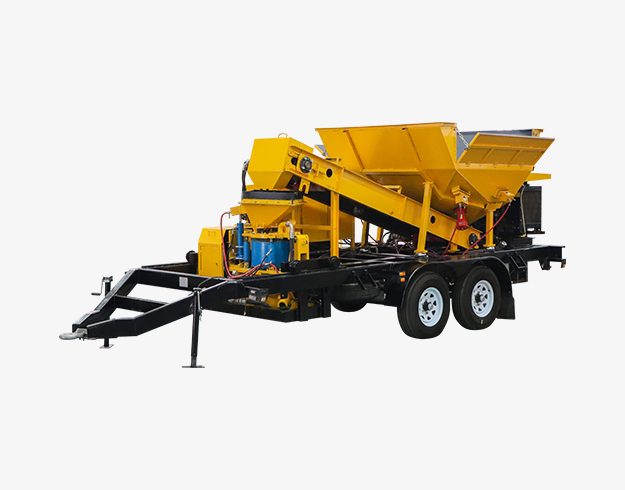

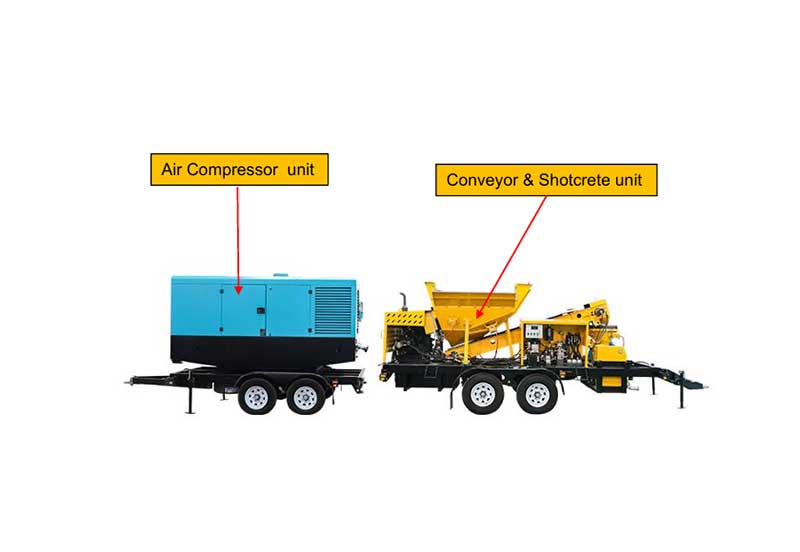

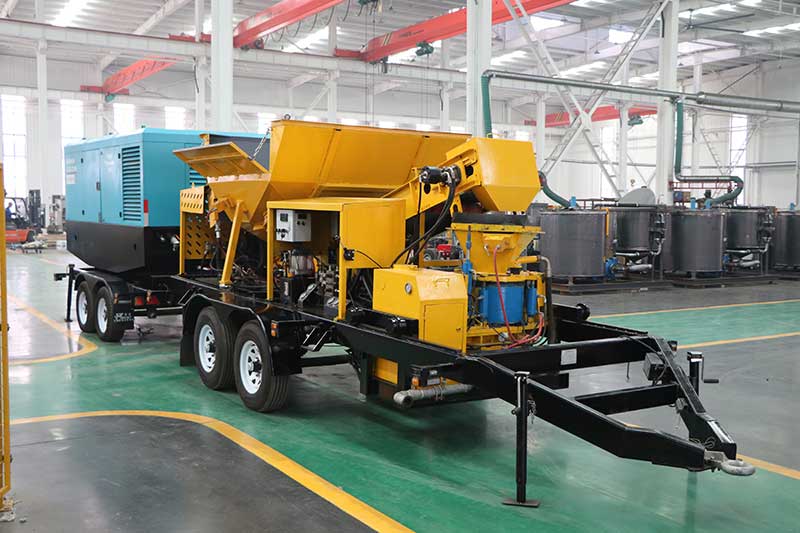

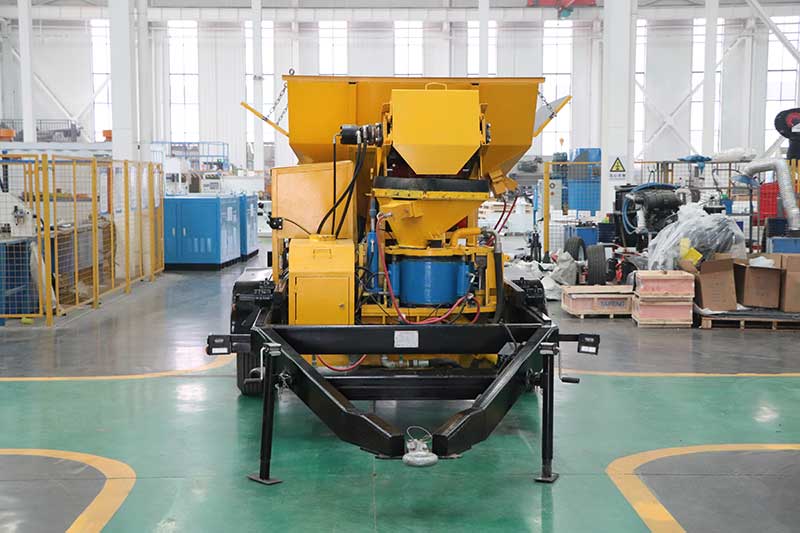

This 15m³/h diesel conveyor shotcrete machine is widely used for spraying operations in underground engineering, transportation tunnels, mine tunnels, and slope support.
Specific applications include: support and backfilling grouting for metal and non-metal mine tunnel excavation; primary support and secondary lining for railway and highway tunnels, culverts, and subway systems; concrete spraying for hydroelectric tunnel projects, underground power plants, and civil defense structures; road and mountain slope reinforcement, excavation pit protection, and river restoration; and gravel conveying and spraying operations in conjunction with TBMs.

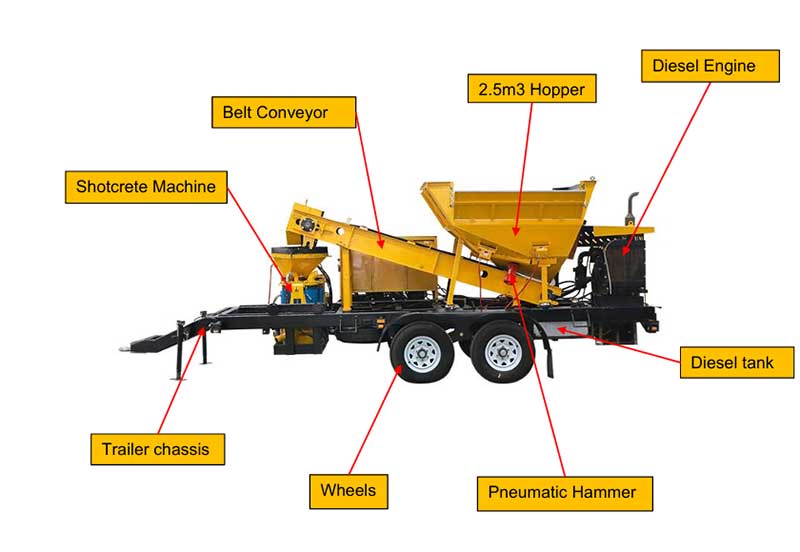

| Name | Data | |
| Model | HWZC-15/D | |
| Diesel engine | Model | YANMAR-3TNV88-BDTYC |
| Power | 26.9KW@3000rpm | |
| Shotcrete machine | Output | 15m3/h |
| Recommended hose sizes(mm) | ID64 | |
| Max.Aggregate size | 20mm | |
| Hopper Capacity | 2.5m3 | |

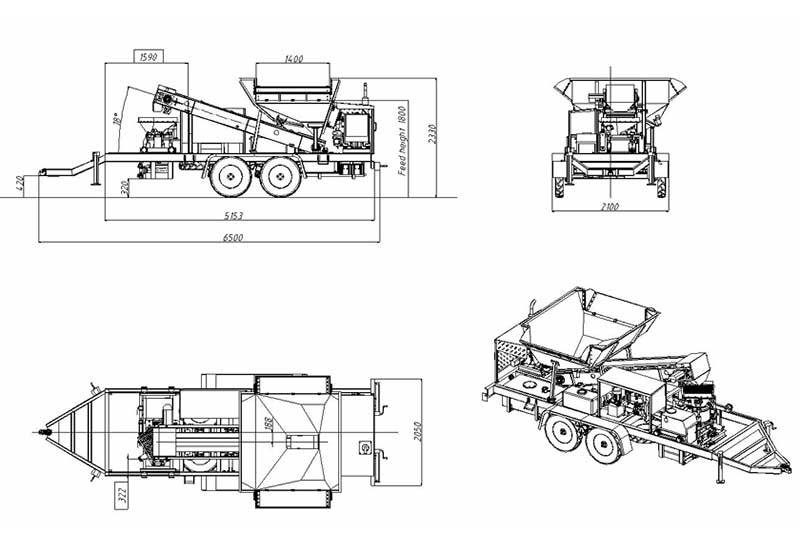

| Dimension | 6500×2100×2330mm | |
| Weight | 3600Kg | |
| We can also customize products according to your needs. | ||
