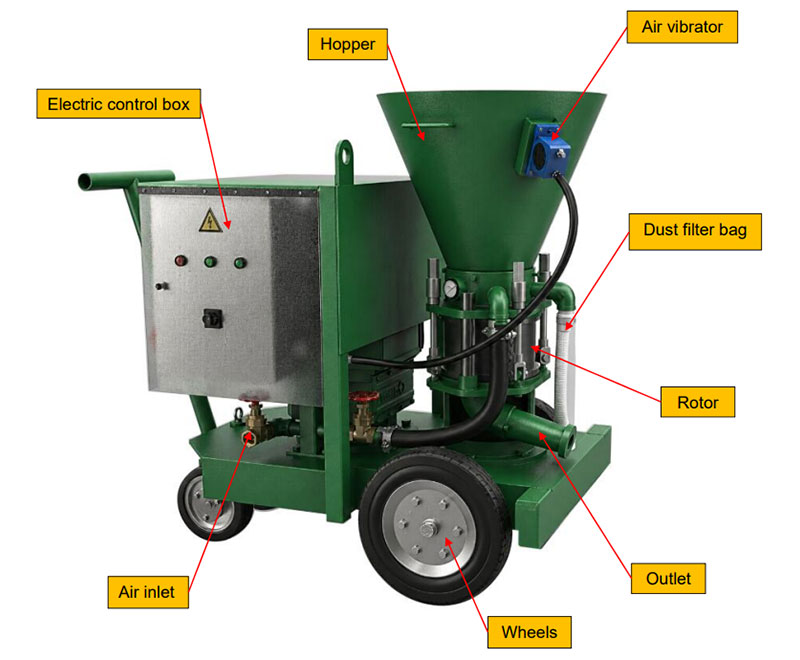

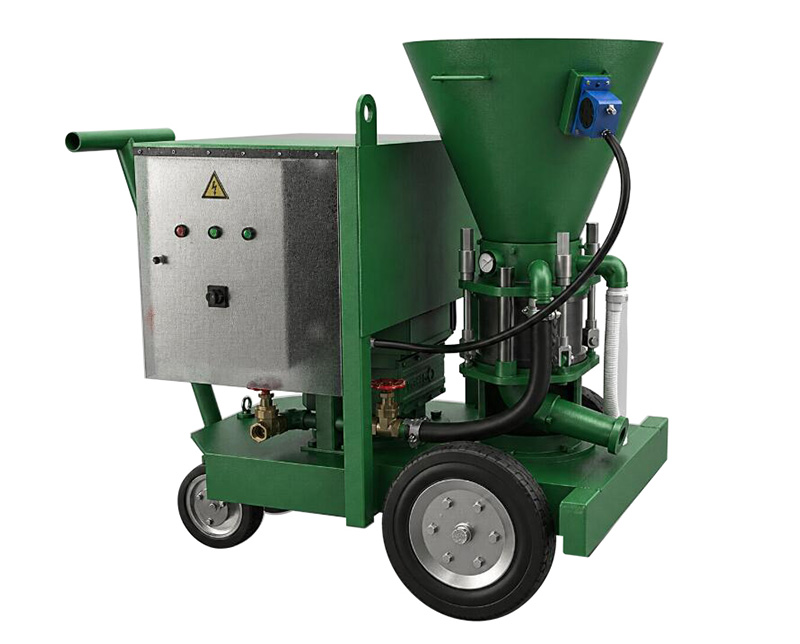

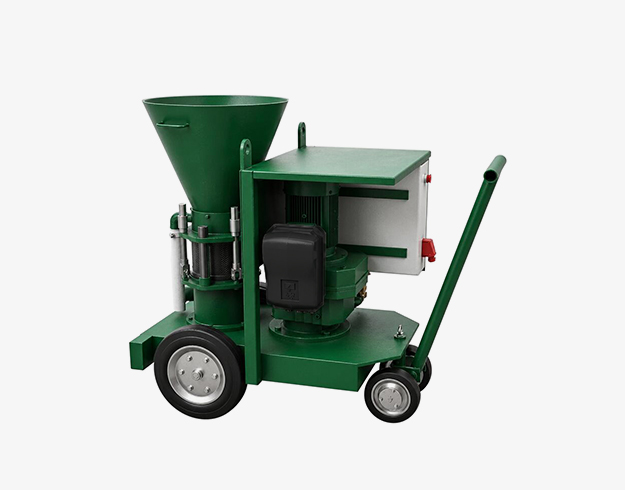

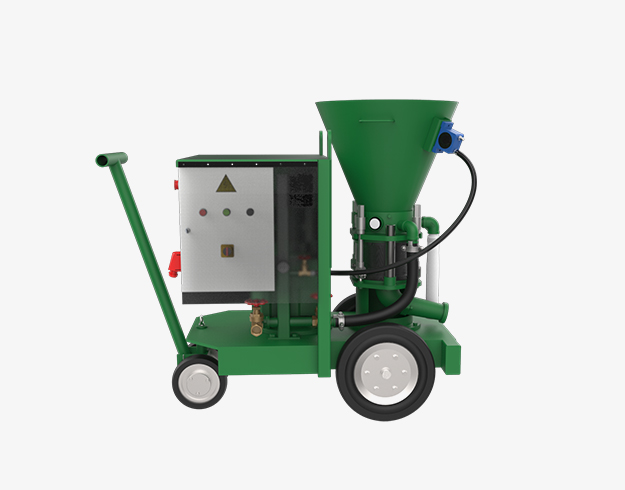

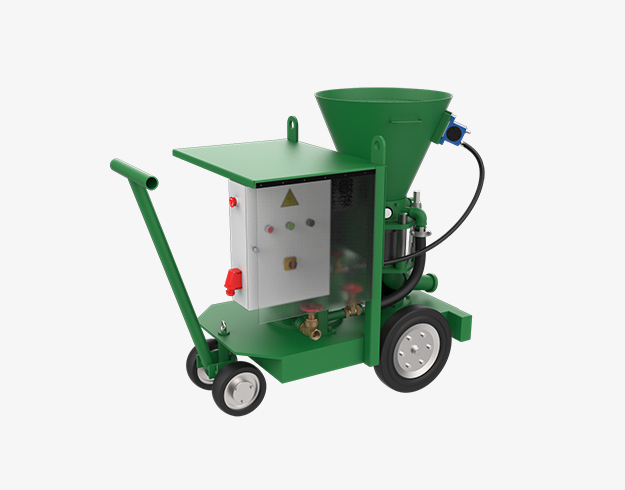

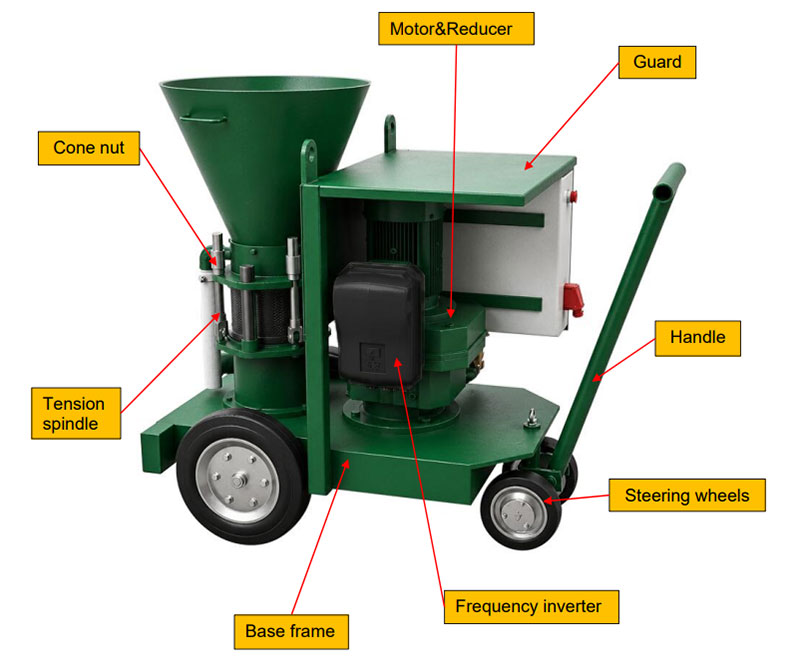

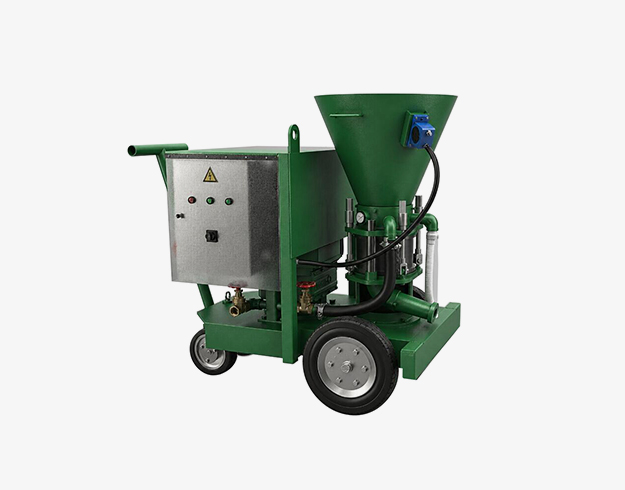

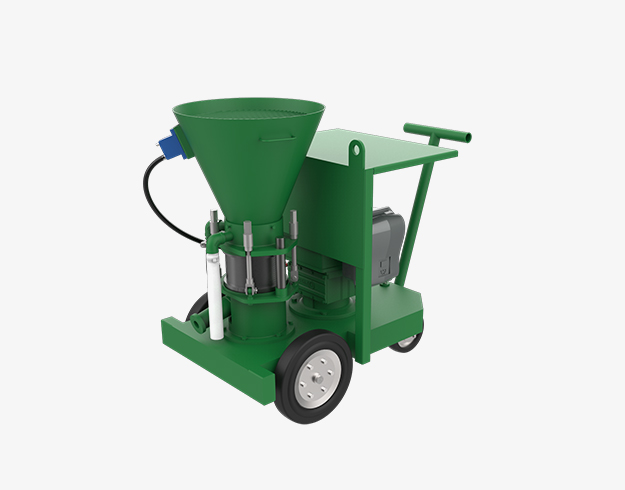

HWZ-3ER-GV Rotor Dry Mix Gunning Machine features a lightweight, compact design, making it smaller and lighter than conventional spray machines, and allowing it to adapt flexibly to a wide range of construction scenarios. It is widely used in engineering applications such as the repair of refractory linings, concrete repair, slope stabilisation, excavation shoring and mining operations, and is a highly efficient and energy-saving engineering spraying and material delivery system.
| Name | Data | |||||
| Machine Type | Rotary machine HWZ-3ER-GV | |||||
| Process | Thin-stream | |||||
| Motor power | 4 KW | |||||
| Power supply | 3X380-480V, 50/60Hz | |||||
| Rotor size in liters | 0.57 | 1.3 | 2.4 | 3.4 | ||
| Output in m3/h ① | 0.25-0.5 | 0.5-1.1 | 1.0-2.1 | 2.1-3 | ||
| Recommended hose sizes | DN25 | DN25 | DN32 | DN40 | ||
| Grain sizes in mm | 8 | 8 | 12 | 15 | ||
| Working air pressure in Mpa | 0.2~0.4 | |||||
| Air consumption in m3/min | 3.5 | 5~6 | ||||
| Max. conveying distance in m | Dry: 200 (Horizontal) /50 (Vertical) | |||||
| Dimensions in mm | Length | 1471 | ||||
| Width | 780 | |||||
| Height | 1200 | 1212 | 1272 | 1330 | ||
| Weight in kg | 550 | 550 | 560 | 570 | ||
| ① Based on a theoretical filling level of 100%. Prior to use or processing, always consult the current product data sheet of the products used | ||||||
| We could also customize according to your demands. | ||||||
