Portable Diesel Air Compressor

Brief Introduction

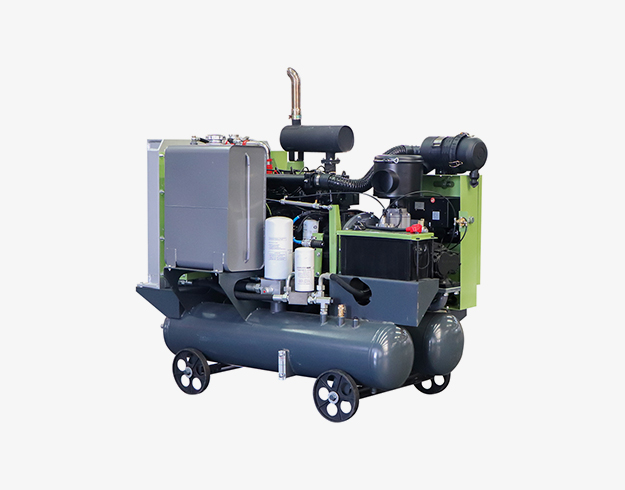

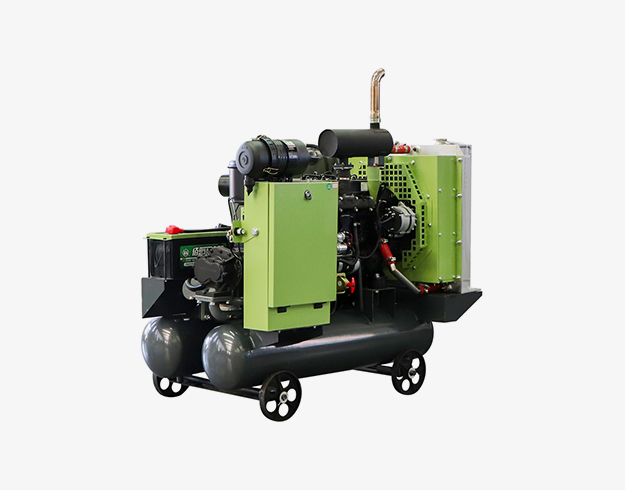

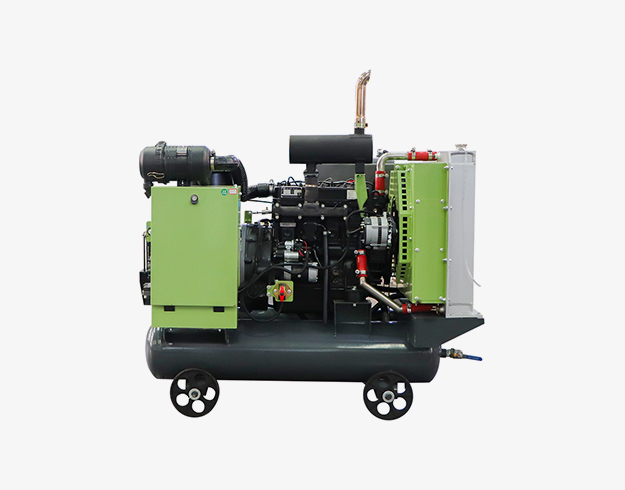

Introduction of HWC-5/8 Portable Diesel Air Compressor

HWC-5/8 portable diesel air compressor features an open-frame design that facilitates the inspection and maintenance of the engine, filters, cooling components, and piping systems. Equipped with integrated dual air receivers and a four-wheel chassis, the unit is easy to maneuver on solid, level ground. This compressor powers a variety of compatible rock drills, breakers, and pneumatic drilling tools, and is also suitable for small-scale sandblasting operations where air consumption matches the unit's output capacity.

Features

Features of HWC-5/8 Portable Diesel Air Compressor

Portable Diesel Air Compressor

Independent Diesel Power. Operate at outdoor worksites without a mains electrical connection.

5 m³ per Minute at 8 Bar. Match the rated air delivery and working pressure to the connected tools. The equivalent output is approximately 177 CFM at 116 PSI.

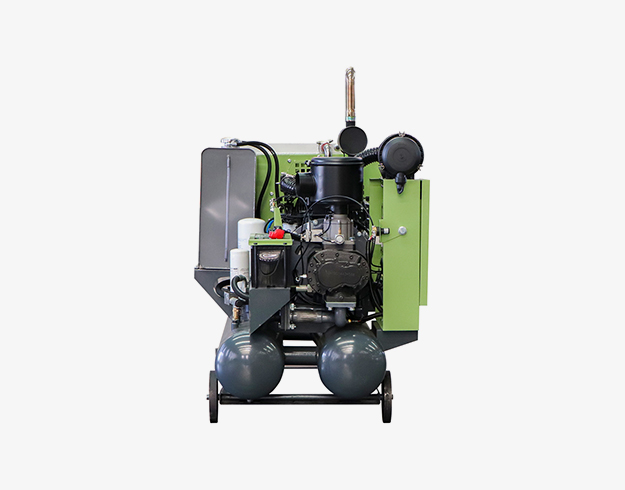

Integrated Twin Air Tanks. The two tanks provide air storage and buffering within the machine base.

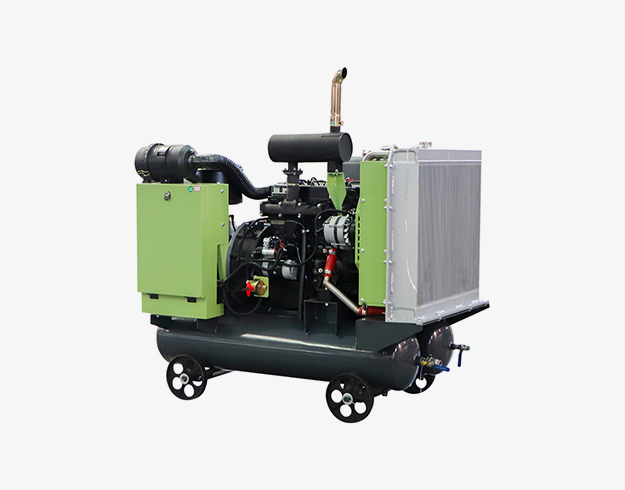

Small Air Compressor

Four Wheel Base. Small wheels help reposition the compressor over suitable firm, level surfaces within a work area.

Open Access for Servicing. The open layout provides access to filters, engine components, cooling surfaces, and visible pipe connections.

Compact Equipment Layout. The engine, compressor assembly, and twin tanks share one base, with dimensions of 1700 × 1120 × 1600 mm.

Parameters

Parameters of HWC-5/8 Portable Diesel Air Compressor

Model	HWC-5/8
Drive Type	Diesel Engine Driven
Rated Air Delivery	5 m³/min
Equivalent Air Delivery	Approx. 177 CFM
Working Pressure	8 bar / 0.8 MPa
Equivalent Working Pressure	Approx. 116 PSI
Structural Design	Open Frame
Tank Arrangement	Twin Tanks
Base Configuration	Four Wheels
Overall Dimensions L × W × H	1700 × 1120 × 1600 mm
Machine Weight	505 kg

Detail Part

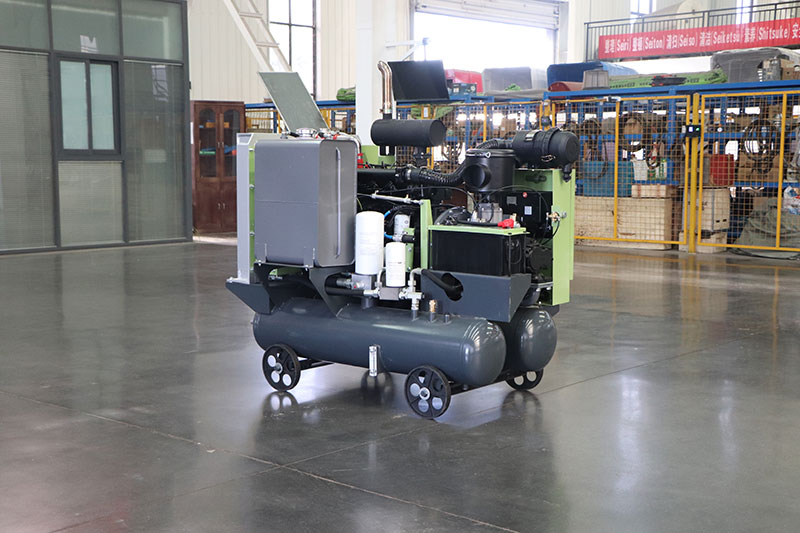

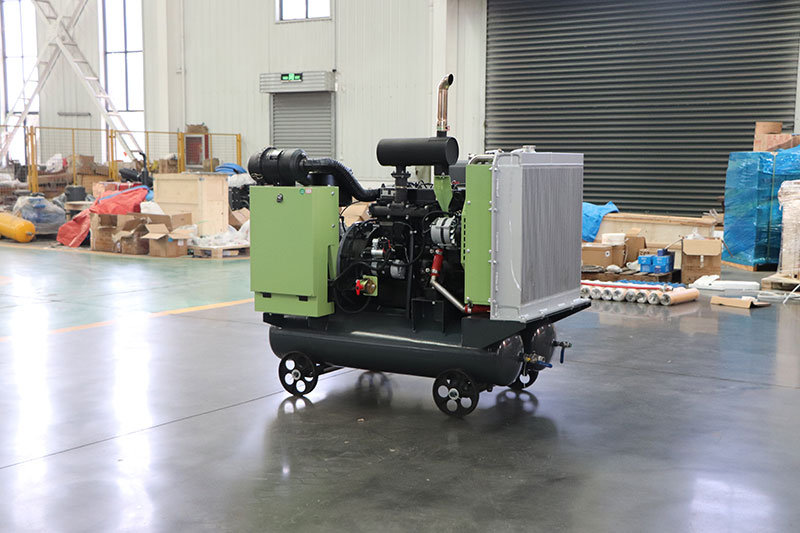

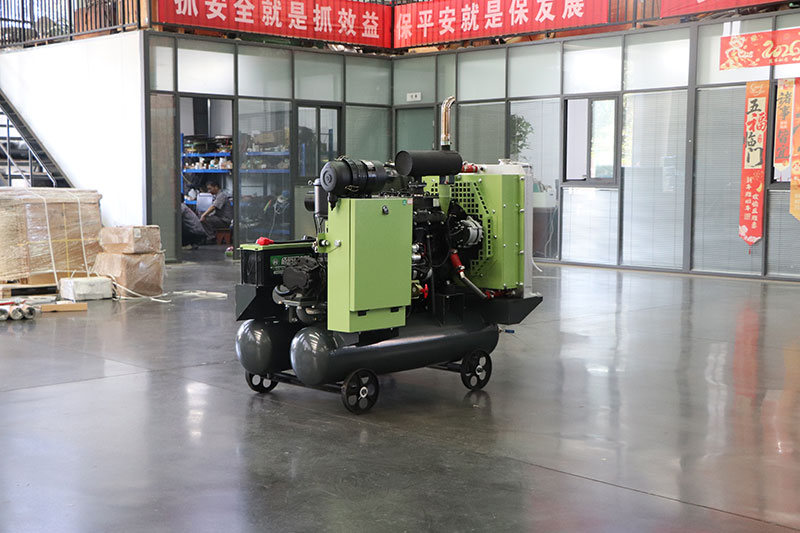

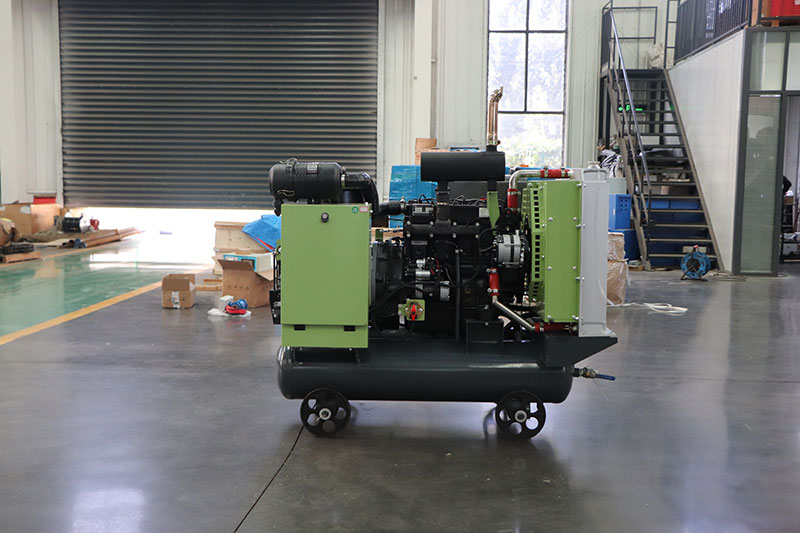

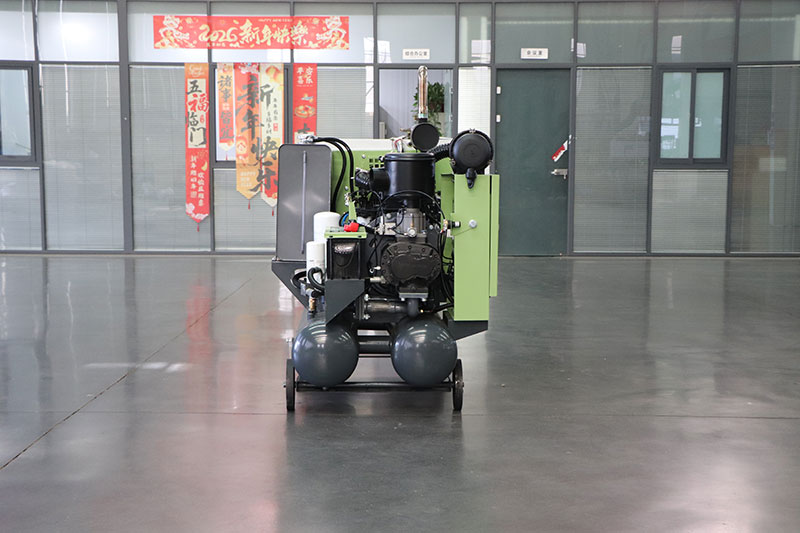

Detail Part of HWC-5/8 Portable Diesel Air Compressor

Packaging

Packaging Display

Products

Recommend Relevant Products

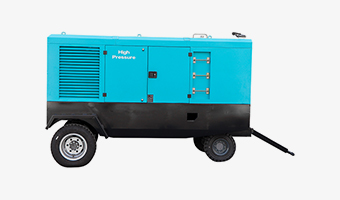

HWC-22/10 Cummins Diesel Screw Air Compressor
